SKU: UKFE210H-SNR

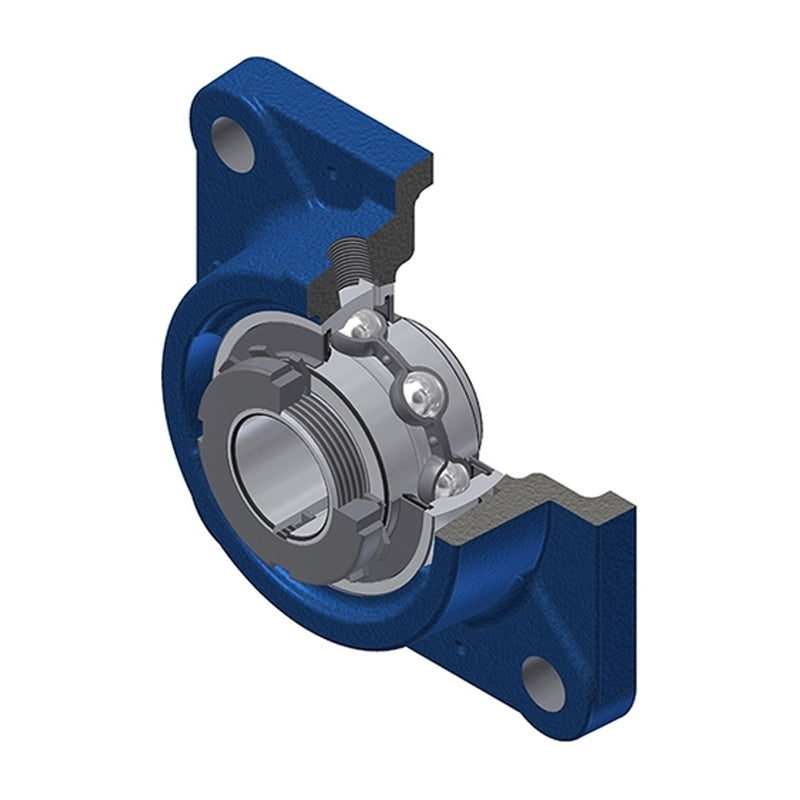

SNR UKFE210H Metric Four Bolt Square Cast Iron Flange Housing Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
SNR UKFE210H Metric Four Bolt Square Cast Iron Flange Housing Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
Regular price
$103.00
ex VAT
Regular price
Sale price
$103.00
ex VAT
In stock
Price Break
3+
$76.73
4+
$73.63
9+
$72.08
19+
$69.76
49+
$68.21
99+
$64.33
499+
$54.26
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UKFE
- Bolt Hole Centres:
- 111mm
Technical
Technical

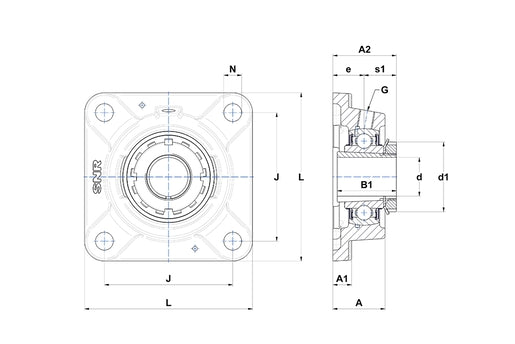

| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 44mm |
| A1 | 13mm |
| A2 | 55.5mm |
| B | 31mm |
| B1 | 55mm |
| d1 | 70mm |
| e | 28mm |
| J | 111mm |
| L | 146mm |
| N | 18mm |
| s1 | 27.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2310 |
| Mass | 2.69 kg |
