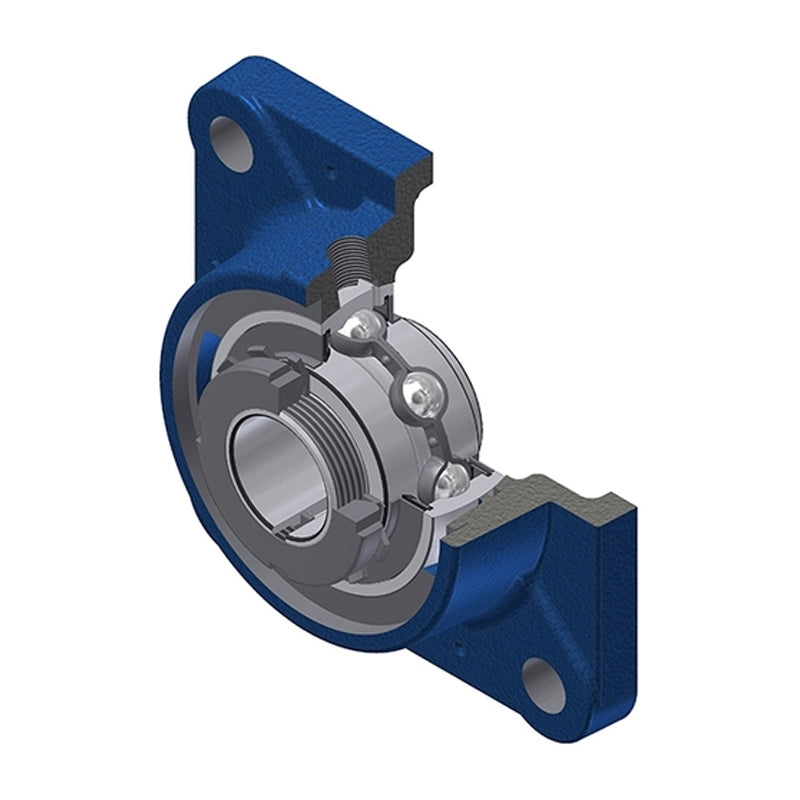

SNR UKFE213HN Metric Four Bolt Square Cast Iron Flange Housing Insert and Adaptor Sleeve Fits 60mm Shaft - Allow 2-3 Days
SNR UKFE213HN Metric Four Bolt Square Cast Iron Flange Housing Insert and Adaptor Sleeve Fits 60mm Shaft - Allow 2-3 Days
Regular price
$235.57
ex VAT
Regular price
Sale price
$235.57
ex VAT
In stock
Price Break
3+
$175.50
4+
$168.41
9+
$164.86
19+
$159.54
49+
$156.00
99+
$147.13
499+
$124.09
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UKFE
- Bolt Hole Centres:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 56mm |
| A1 | 18mm |
| A2 | 70mm |
| B | 36mm |
| B1 | 65mm |
| d1 | 85mm |
| e | 38mm |
| J | 150mm |
| L | 188mm |
| N | 18mm |
| s1 | 32mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 57.2 kN |
| Static load C0 | 40 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2313 |
| Mass | 6.29 kg |
