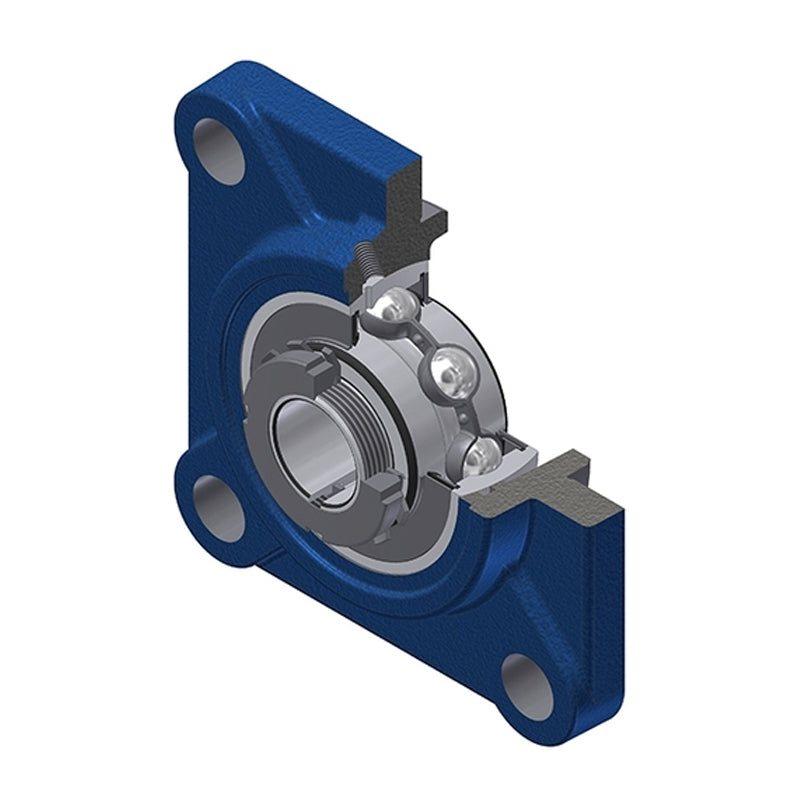

• SNR UKFS311H Metric Four Bolt Square Cast Iron Housing Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
  • SNR
1 2

SKU: UKFS311H-SNR

SNR UKFS311H Metric Four Bolt Square Cast Iron Housing Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days

SNR UKFS311H Metric Four Bolt Square Cast Iron Housing Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
$128.07 ex VAT
$128.07 ex VAT
Sale Sold out

In stock

Price Break
3+ $85.79
4+ $80.97
9+ $80.00
19+ $79.04
49+ $78.08
99+ $77.11
499+ $72.29
999+ $71.33
1999+ $70.36
2999+ $69.40
4999+ $67.47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
UKFS
Bolt Hole Centres:
140mm
Technical

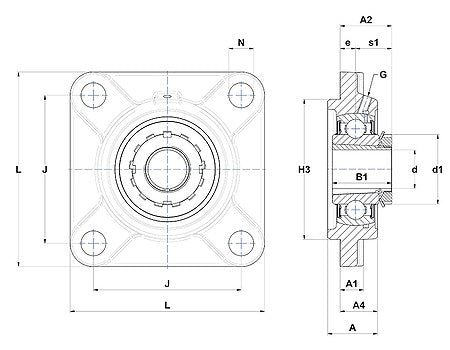

--- Dimensions
Shaft diameter d 50mm
A 52mm
A1 20mm
A2 51mm
A4 39mm
B 43mm
B1 59mm
d1 75mm
e 17mm
H3 150mm
J 140mm
L 185mm
N 23mm
s1 34mm
G M6x1
--- Load rating
Dynamic load C 71.5 kN
Static load C0 44.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2311
Mass 5.9 kg
