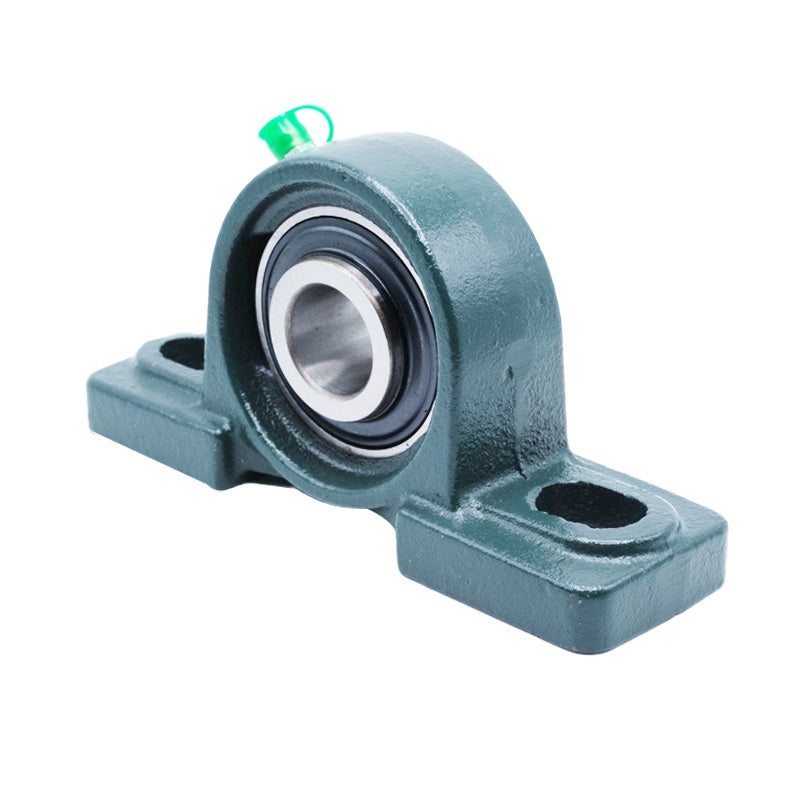

• UKP205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Tapered Bore Insert (Requires Adaptor Sleeve - Sold Seperately)
1 1

SKU: UKP.205

UKP205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Tapered Bore Insert (Requires Adaptor Sleeve - Sold Seperately)

UKP205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Tapered Bore Insert (Requires Adaptor Sleeve - Sold Seperately)
$20.77 ex VAT
$20.77 ex VAT
Sale Sold out

Low stock

Price Break
3+ $13.91
4+ $13.13
9+ $12.98
19+ $12.82
49+ $12.66
99+ $12.51
499+ $11.73
999+ $11.57
1999+ $11.41
2999+ $11.26
4999+ $10.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UKPNS200_DESC
Note: In order for the insert to fit on the shaft an adaptor sleeve MUST be used. These can be found [here]
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Style:
UKP
Bolt Hole Centres:
105mm
Technical
d 20mm (With Adaptor Sleeve)
a 140mm
h 36.5mm
e 105mm
b 38mm
s1 13mm
s2 19mm
g 15mm
w 71mm
t 48mm
B1 35mm
Bolt size M10
Bearing no UK205;H2305
Housing no P205
Weight 0.81 kg
--- Compatible Adaptor Sleeves
H2305 20mm Bore
HE2305 3/4 inch Bore
