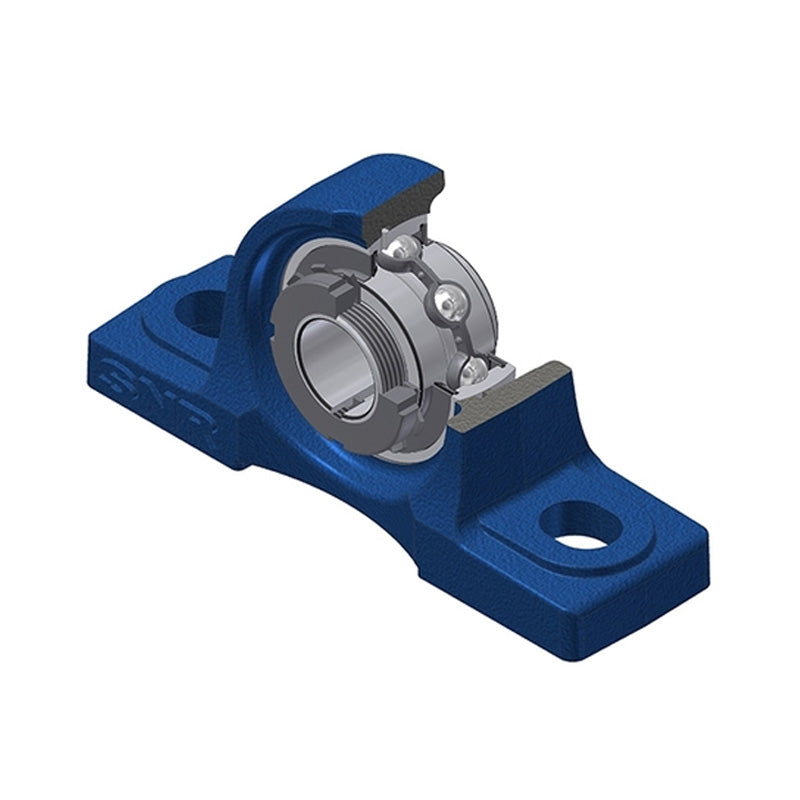

• SNR UKP208H Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 35mm Shaft - Allow 2-3 Days
  • SNR UKP208H Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 35mm Shaft - Allow 2-3 Days
  • SNR
1 3

SKU: UKP208H-SNR

SNR UKP208H Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 35mm Shaft - Allow 2-3 Days

SNR UKP208H Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 35mm Shaft - Allow 2-3 Days
$66.59 ex VAT
$66.59 ex VAT
Sale Sold out

In stock

Price Break
3+ $44.61
4+ $42.10
9+ $41.60
19+ $41.10
49+ $40.60
99+ $40.10
499+ $37.59
999+ $37.09
1999+ $36.59
2999+ $36.09
4999+ $35.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
UKP
Bolt Hole Centres:
137mm
Technical

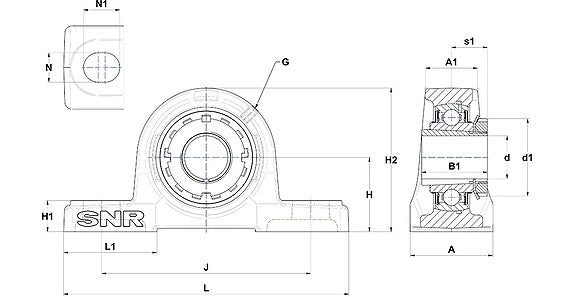

--- Dimensions
Shaft diameter d 35mm
A 54mm
A1 34mm
B 29mm
d1 58mm
H 49.2mm
H1 19mm
H2 100mm
J 137mm
L 184mm
L1 52mm
N 17mm
N1 23mm
s1 24.5mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C

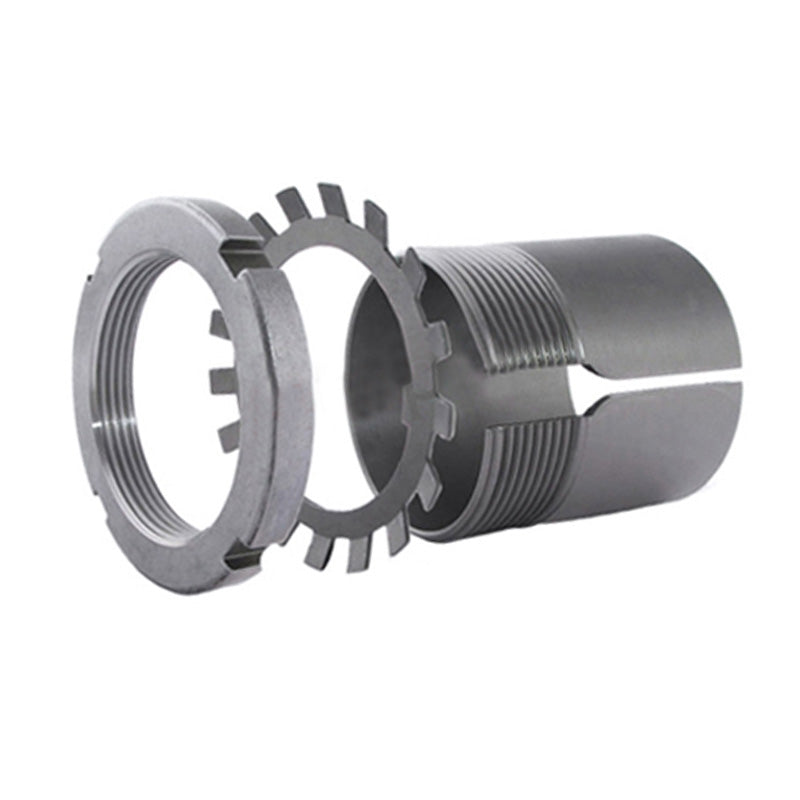

Adaptor sleeve H2308
Mass 2.2 kg
