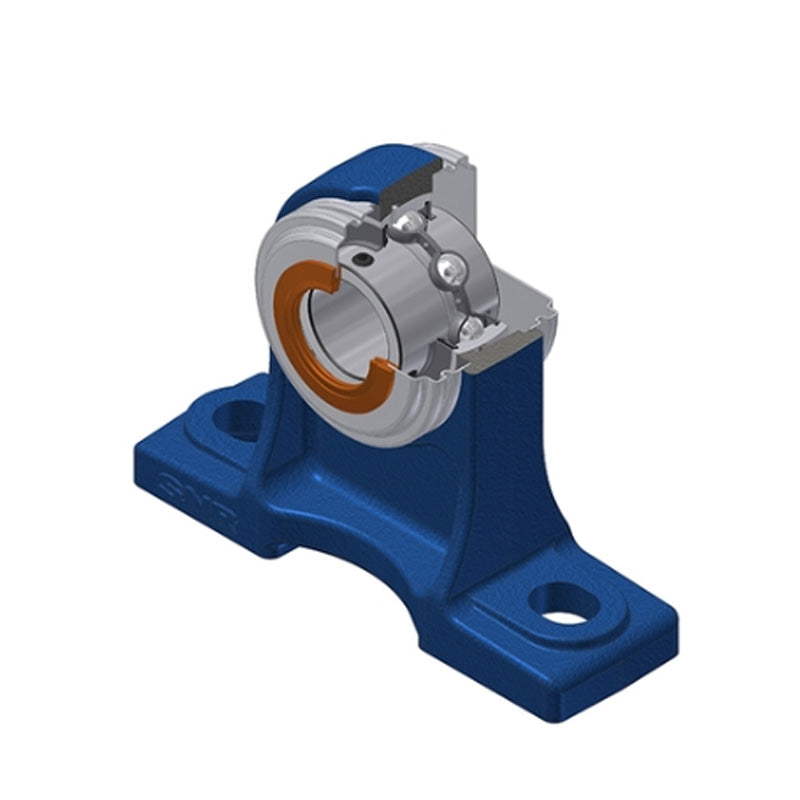

• SNR UKP210HCC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
  • SNR UKP210HCC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
  • SNR
1 3

SKU: UKP210HCC-SNR

SNR UKP210HCC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days

SNR UKP210HCC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Closed Version - Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
$92.65 ex VAT
$92.65 ex VAT
Sale Sold out

In stock

Price Break
3+ $62.06
4+ $58.57
9+ $57.87
19+ $57.18
49+ $56.48
99+ $55.78
499+ $52.30
999+ $51.60
1999+ $50.90
2999+ $50.20
4999+ $48.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
UKP
Bolt Hole Centres:
159mm
Technical

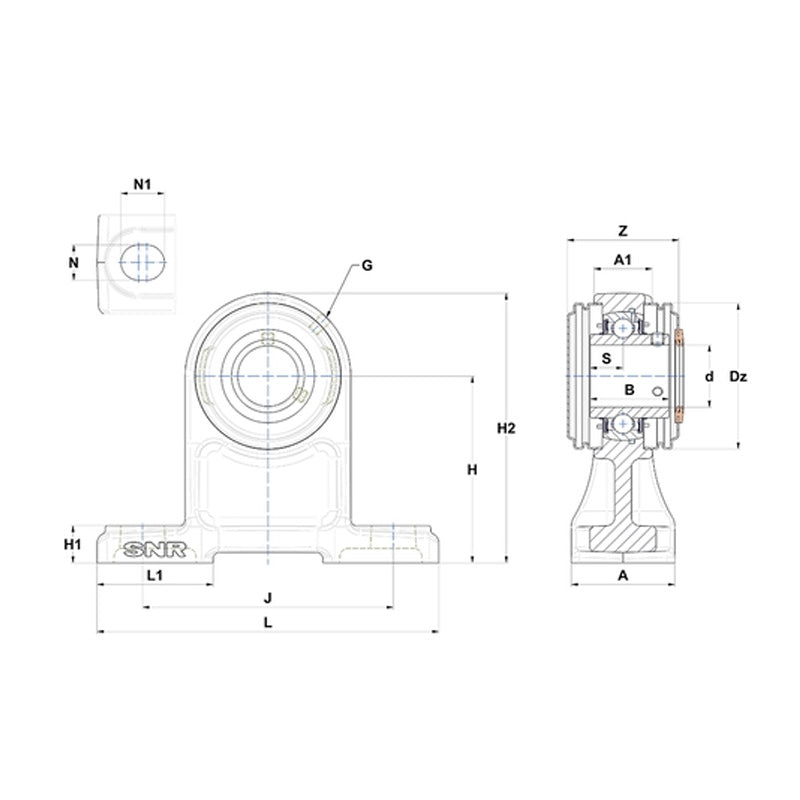

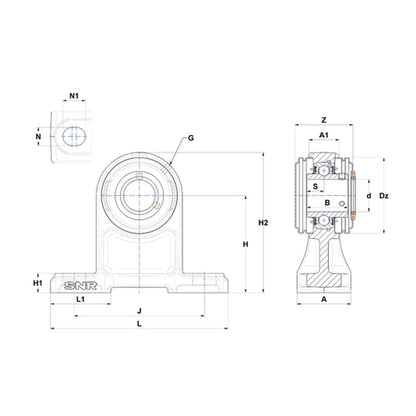

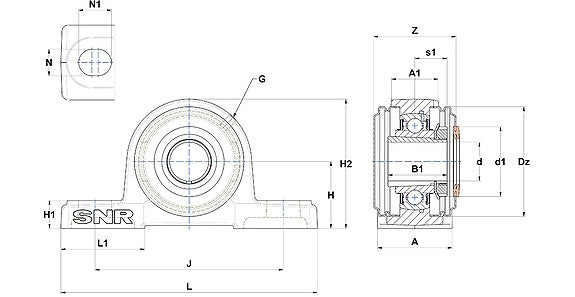

--- Dimensions
Shaft diameter d 45mm
A 60mm
A1 39mm
B 31mm
d1 70mm
H 57.2mm
H1 22mm
H2 114mm
J 159mm
L 206mm
L1 65mm
N 20mm
N1 25mm
Dz 100mm
Z 76mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adaptor sleeve H2310
Mass 3.164 kg
