SKU: UKPA205H-SNR
SNR UKPA205H Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 20mm Shaft - Allow 2-3 Days
SNR UKPA205H Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 20mm Shaft - Allow 2-3 Days
Regular price
$53.01
ex VAT
Regular price
Sale price
$53.01
ex VAT
In stock
Price Break
3+
$39.49
4+
$37.90
9+
$37.10
19+
$35.90
49+
$35.10
99+
$33.11
499+
$27.92
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UKPA/UKPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- UKPA
- Bolt Hole Centres:
- 56mm
Technical
Technical

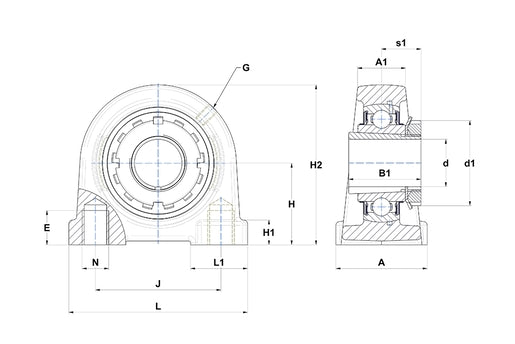

| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 38mm |
| A1 | 23mm |
| B | 21mm |
| d1 | 38mm |
| E | 15mm |
| H | 36.5mm |
| H1 | 12mm |
| H2 | 72mm |
| J | 56mm |
| L | 84mm |
| L1 | 27mm |
| N | M10 |
| s1 | 18.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2305 |
| Mass | 0.74 kg |
