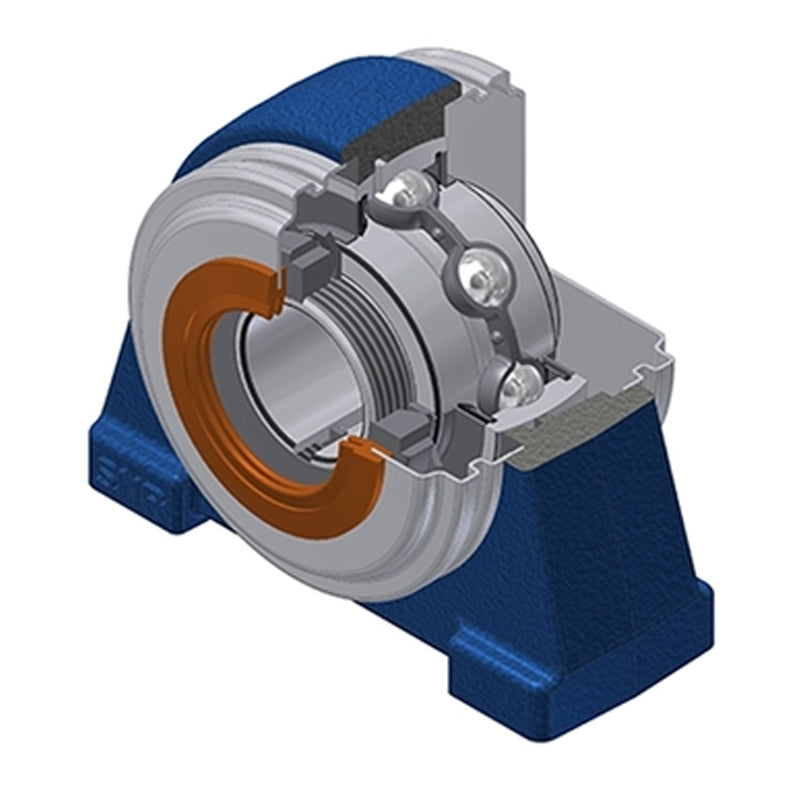

• SNR UKPAE207HCO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 30mm Shaft - Allow 2-3 Days
1 1

SKU: UKPAE207HCO-SNR

SNR UKPAE207HCO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 30mm Shaft - Allow 2-3 Days

SNR UKPAE207HCO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 30mm Shaft - Allow 2-3 Days
$117.82 ex VAT
$117.82 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.77
4+ $84.23
9+ $82.45
19+ $79.79
49+ $78.02
99+ $73.59
499+ $62.06
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UKPA/UKPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
UKPAE
Bolt Hole Centres:
82.6mm
Technical
--- Dimensions
Shaft diameter 30mm
A 45mm
A1 27mm
B 27mm
d1 52mm
E 12.5mm
H 47.6mm
H1 12mm
H2 93mm
J 82.6mm
L 103mm
L1 22.5mm
N M10
Dz 80mm
Z 58.9mm
G R1/8″
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adaptor sleeve H2307
Mass 1.456 kg
