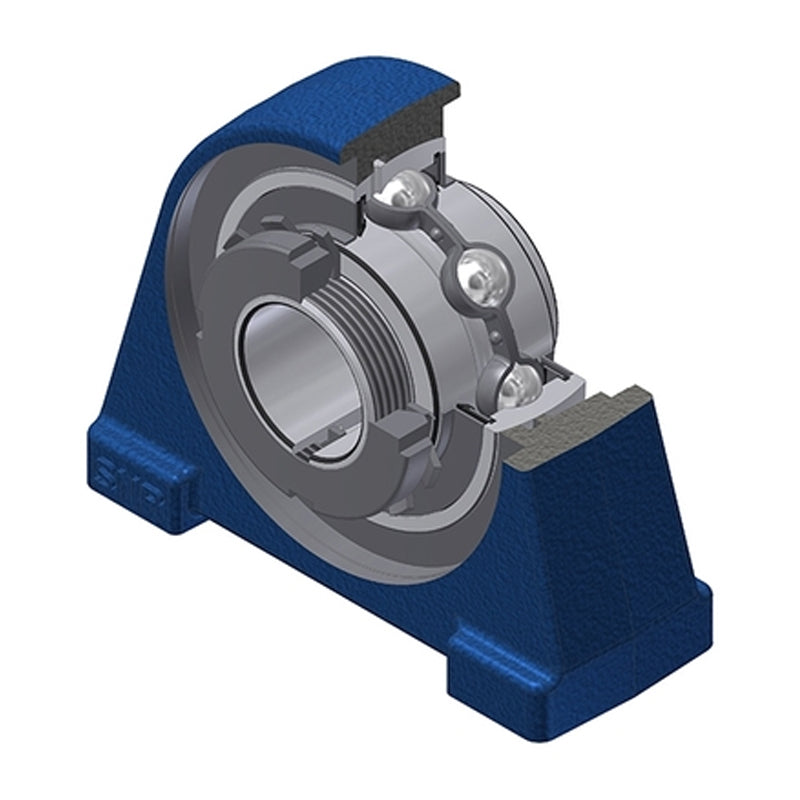

• SNR UKPAE208HN Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 35mm Shaft - Allow 2-3 Days
1 1

SKU: UKPAE208HN-SNR

SNR UKPAE208HN Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 35mm Shaft - Allow 2-3 Days

SNR UKPAE208HN Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 35mm Shaft - Allow 2-3 Days
$117.75 ex VAT
$117.75 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.72
4+ $84.18
9+ $82.41
19+ $79.75
49+ $77.98
99+ $73.55
499+ $62.03
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UKPA/UKPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
UKPAE
Bolt Hole Centres:
88.9mm
Technical
--- Dimensions
Shaft diameter 35mm
A 47mm
A1 30mm
B 29mm
d1 58mm
E 15mm
H 49.2mm
H1 13mm
H2 99mm
J 88.9mm
L 116mm
L1 27mm
N M12
s1 24.5mm
G R1/8″
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adaptor sleeve H2308
Mass 1.7 kg
