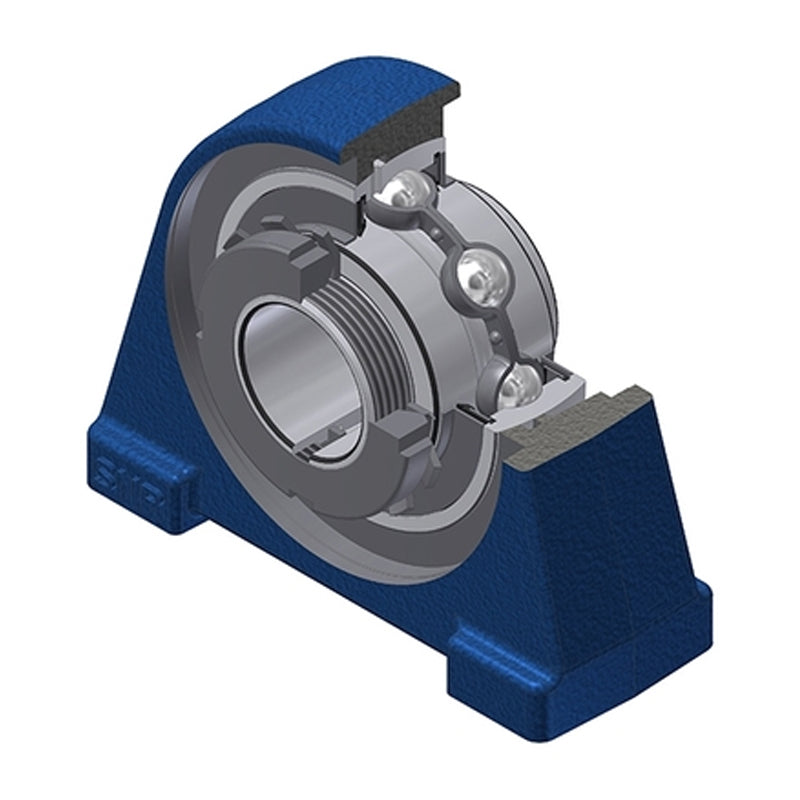

• SNR UKPAE209HN Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
1 1

SKU: UKPAE209HN-SNR

SNR UKPAE209HN Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days

SNR UKPAE209HN Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
$117.81 ex VAT
$117.81 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.76
4+ $84.22
9+ $82.44
19+ $79.79
49+ $78.01
99+ $73.58
499+ $62.06
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UKPA/UKPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
UKPAE
Bolt Hole Centres:
95.3mm
Technical
--- Dimensions
Shaft diameter 40mm
A 48mm
A1 32mm
B 30mm
d1 65mm
E 15mm
H 53.9mm
H1 14mm
H2 107mm
J 95.3mm
L 120mm
L1 29mm
N M12
s1 26mm
G R1/8″
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adaptor sleeve H2309
Mass 1.9 kg
