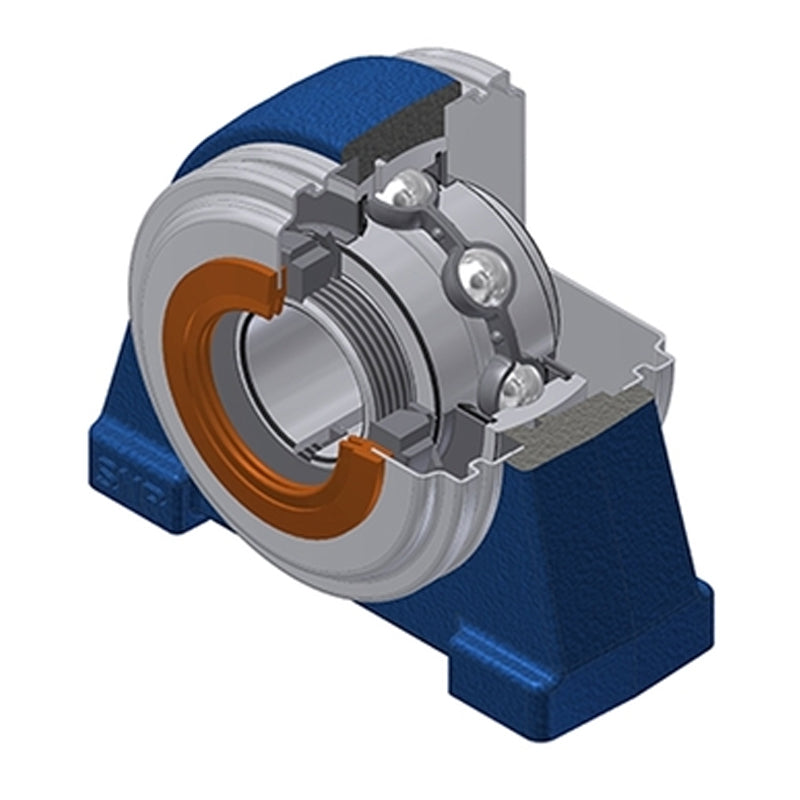

• SNR UKPAE210HCO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
1 1

SKU: UKPAE210HCO-SNR

SNR UKPAE210HCO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days

SNR UKPAE210HCO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
$206.15 ex VAT
$206.15 ex VAT
Sale Sold out

In stock

Price Break
3+ $153.58
4+ $147.37
9+ $144.27
19+ $139.62
49+ $136.51
99+ $128.76
499+ $108.59
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UKPA/UKPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
UKPAE
Bolt Hole Centres:
101.6mm
Technical
--- Dimensions
Shaft diameter 45mm
A 54mm
A1 34mm
B 31mm
d1 70mm
E 20mm
H 57.2mm
H1 15mm
H2 115mm
J 101.6mm
L 135mm
L1 33.5mm
N M16
Dz 100mm
Z 76.1mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adaptor sleeve H2310
Mass 2.752 kg
