• SNR UKPAE211HN Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
1 1

SKU: UKPAE211HN-SNR

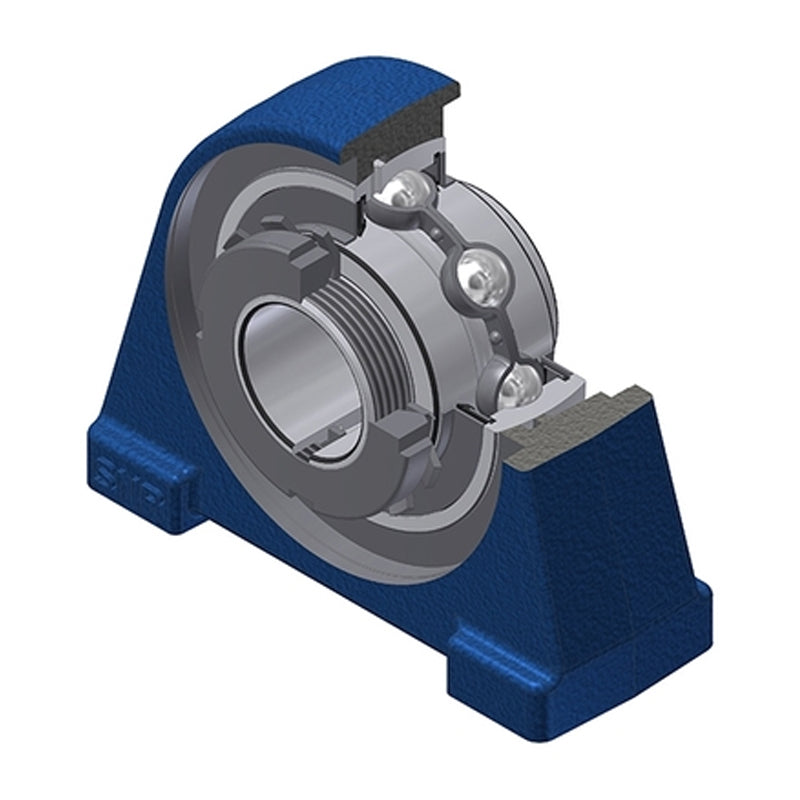

SNR UKPAE211HN Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days

SNR UKPAE211HN Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
$132.60 ex VAT
$132.60 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.78
4+ $94.79
9+ $92.80
19+ $89.80
49+ $87.81
99+ $82.82
499+ $69.85
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UKPA/UKPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
UKPAE
Bolt Hole Centres:
118mm
Technical
--- Dimensions
Shaft diameter 50mm
A 60mm
A1 35mm
B 33mm
d1 75mm
E 20mm
H 64mm
H1 16mm
H2 125mm
J 118mm
L 150mm
L1 32mm
N M16
s1 29mm
G R1/8″
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adaptor sleeve H2311
Mass 3.11 kg
