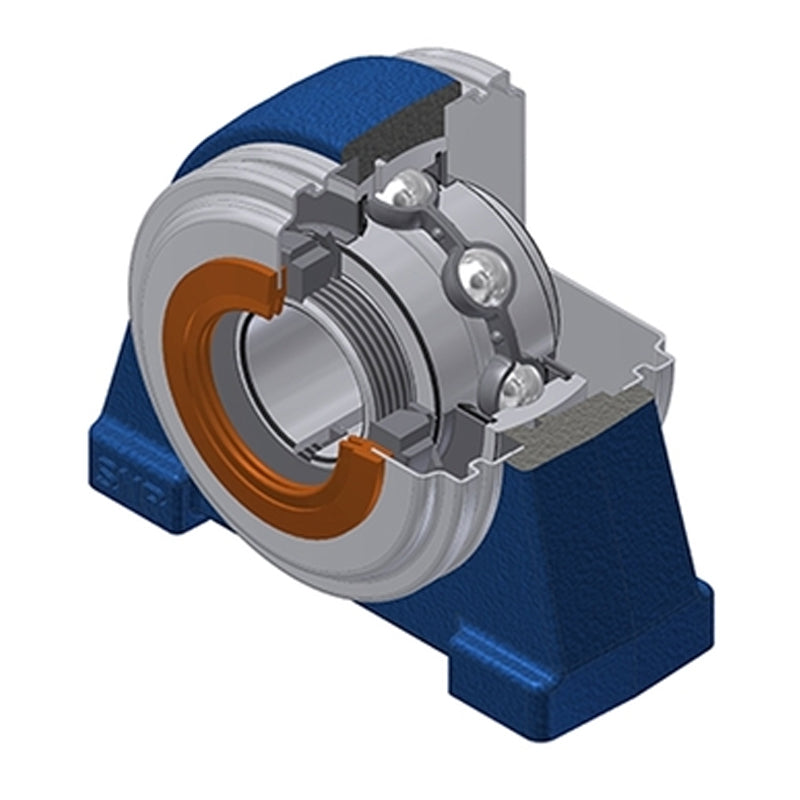

• SNR UKPAE212HCO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 55mm Shaft - Allow 2-3 Days
1 1

SKU: UKPAE212HCO-SNR

SNR UKPAE212HCO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 55mm Shaft - Allow 2-3 Days

SNR UKPAE212HCO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 55mm Shaft - Allow 2-3 Days
$206.19 ex VAT
$206.19 ex VAT
Sale Sold out

In stock

Price Break
3+ $153.61
4+ $147.40
9+ $144.30
19+ $139.64
49+ $136.54
99+ $128.78
499+ $108.61
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UKPA/UKPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
UKPAE
Bolt Hole Centres:
118mm
Technical
--- Dimensions
Shaft diameter 55mm
A 60mm
A1 42mm
B 36mm
d1 80mm
E 20mm
H 69.9mm
H1 16mm
H2 140mm
J 118mm
L 150mm
L1 32mm
N M16
Dz 120mm
Z 91.3mm
G R1/8″
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adaptor sleeve H2312
Mass 4.424 kg
