SKU: UKPE206HCC-SNR

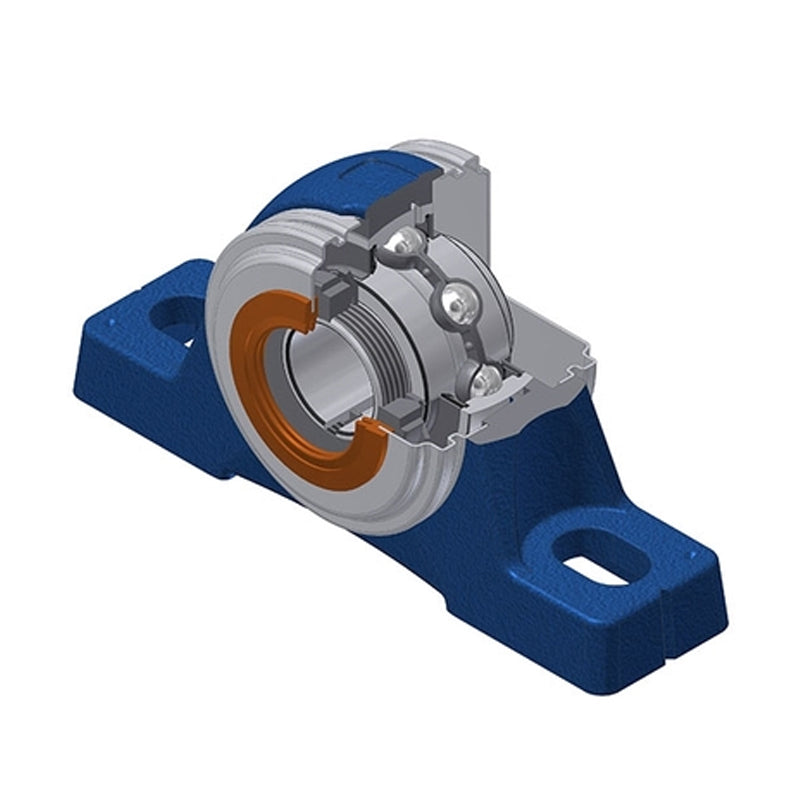

SNR UKPE206HCC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 25mm Shaft - Allow 2-3 Days
SNR UKPE206HCC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 25mm Shaft - Allow 2-3 Days
Regular price
$103.07
ex VAT
Regular price
Sale price
$103.07
ex VAT
In stock
Price Break
3+
$76.78
4+
$73.68
9+
$72.13
19+
$69.80
49+
$68.25
99+
$64.37
499+
$54.29
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- UKPE
- Bolt Hole Centres:
- 118mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| A | 40mm |
| A1 | 25mm |
| B | 25mm |
| d1 | 45mm |
| H | 42.9mm |
| H1 | 17mm |
| H2 | 82mm |
| J | 118mm |
| L | 158mm |
| L1 | 47mm |
| N | 14mm |
| N1 | 22mm |
| Dz | 70mm |
| Z | 52.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2306 |
| Mass | 1.265 kg |
