SKU: UKPE207HN-SNR

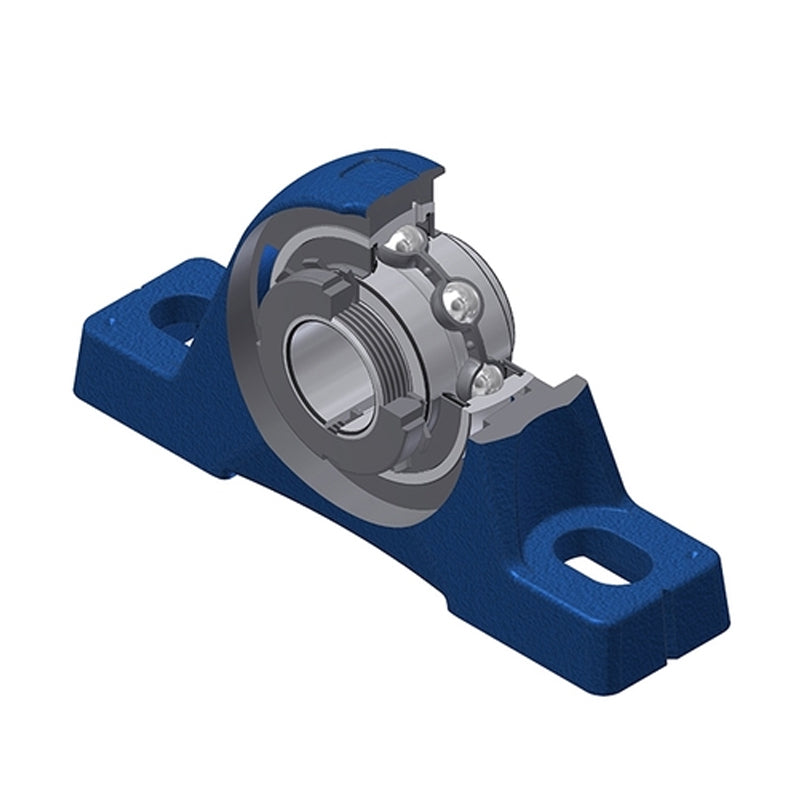

SNR UKPE207HN Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 30mm Shaft - Allow 2-3 Days
SNR UKPE207HN Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 30mm Shaft - Allow 2-3 Days
Regular price
$73.58
ex VAT
Regular price
Sale price
$73.58
ex VAT
In stock
Price Break
3+
$54.82
4+
$52.60
9+
$51.49
19+
$49.83
49+
$48.73
99+
$45.96
499+
$38.76
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- UKPE
- Bolt Hole Centres:
- 126mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 30mm |
| A | 45mm |
| A1 | 27mm |
| B | 27mm |
| d1 | 52mm |
| H | 47.6mm |
| H1 | 19mm |
| H2 | 93mm |
| J | 126mm |
| L | 163mm |
| L1 | 49mm |
| N | 14mm |
| N1 | 21mm |
| s1 | 22.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2307 |
| Mass | 1.54 kg |
