SKU: UKPE208H-SNR

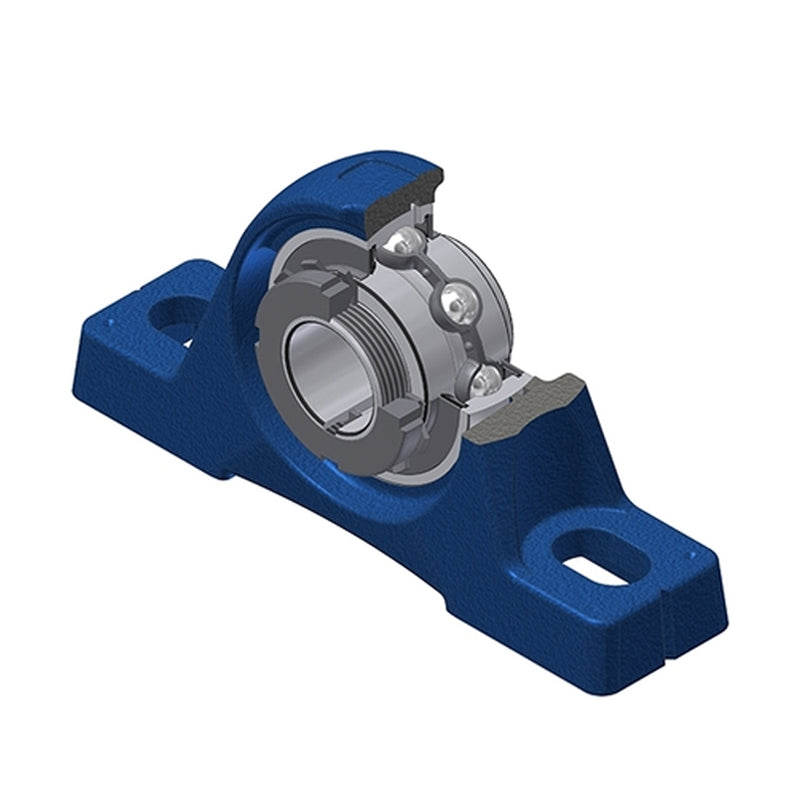

SNR UKPE208H Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 35mm Shaft - Allow 2-3 Days
SNR UKPE208H Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 35mm Shaft - Allow 2-3 Days
Regular price
$73.59
ex VAT
Regular price
Sale price
$73.59
ex VAT
In stock
Price Break
3+
$54.83
4+
$52.61
9+
$51.50
19+
$49.84
49+
$48.73
99+
$45.97
499+
$38.77
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- UKPE
- Bolt Hole Centres:
- 138mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| A | 48mm |
| A1 | 30mm |
| B | 29mm |
| d1 | 58mm |
| H | 49.2mm |
| H1 | 19mm |
| H2 | 99mm |
| J | 138mm |
| L | 179mm |
| L1 | 53mm |
| N | 14mm |
| N1 | 26mm |
| s1 | 24.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2308 |
| Mass | 1.9 kg |
