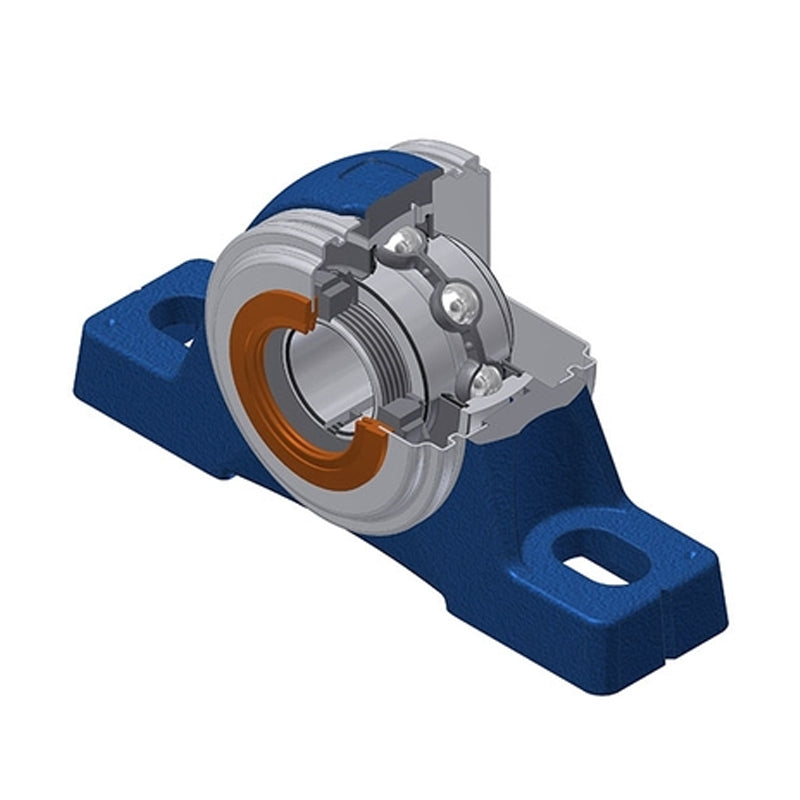

SNR UKPE209HCC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 40mm Shaft - Allow 2-3 Days
SNR UKPE209HCC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 40mm Shaft - Allow 2-3 Days
Regular price
$206.26
ex VAT
Regular price
Sale price
$206.26
ex VAT
In stock
Price Break
3+
$153.66
4+
$147.45
9+
$144.35
19+
$139.69
49+
$136.58
99+
$128.82
499+
$108.65
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UKPE
- Bolt Hole Centres:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 48mm |
| A1 | 32mm |
| B | 30mm |
| d1 | 65mm |
| H | 54mm |
| H1 | 21.5mm |
| H2 | 107mm |
| J | 150mm |
| L | 192mm |
| L1 | 54.5mm |
| N | 14mm |
| N1 | 29mm |
| Dz | 95mm |
| Z | 70.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2309 |
| Mass | 2.371 kg |
