SKU: UKPE213H-SNR

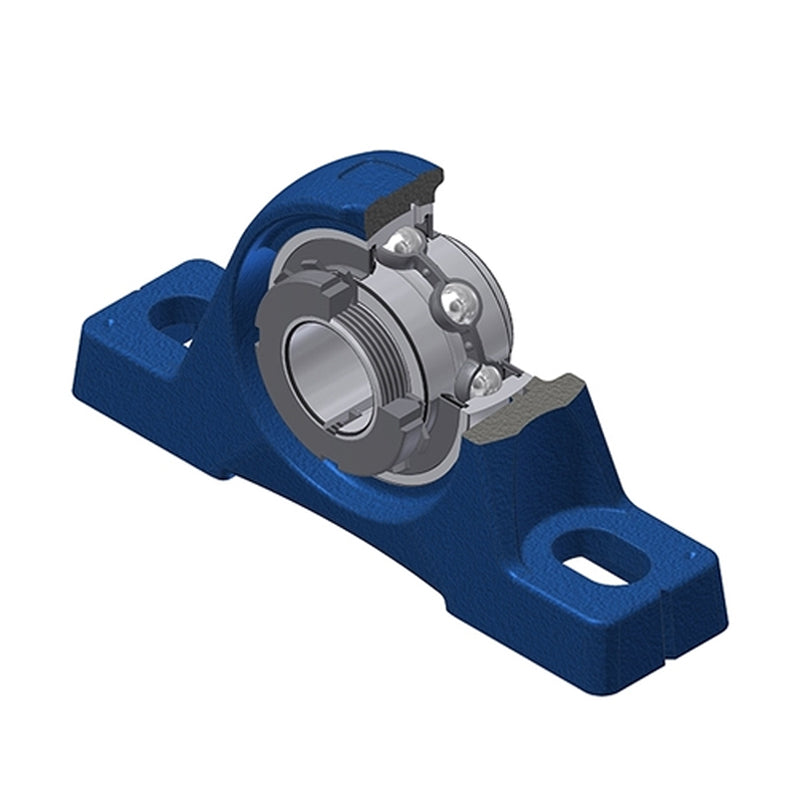

SNR UKPE213H Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 60mm Shaft - Allow 2-3 Days

SNR UKPE213H Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 60mm Shaft - Allow 2-3 Days
Regular price $206.15 ex VAT
Regular price Sale price $206.15 ex VAT
Sale Sold out

In stock

Price Break
3+ $153.58
4+ $147.37
9+ $144.27
19+ $139.62
49+ $136.51
99+ $128.76
499+ $108.59
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 60mm
A 65mm
A1 44mm
B 36mm
d1 85mm
H 79.4mm
H1 27.5mm
H2 156mm
J 203mm
L 260mm
L1 77mm
N 22mm
N1 28mm
s1 32mm
G R1/8″
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adaptor sleeve H2313
Mass 6.35 kg
