SKU: UKPE215H-SNR

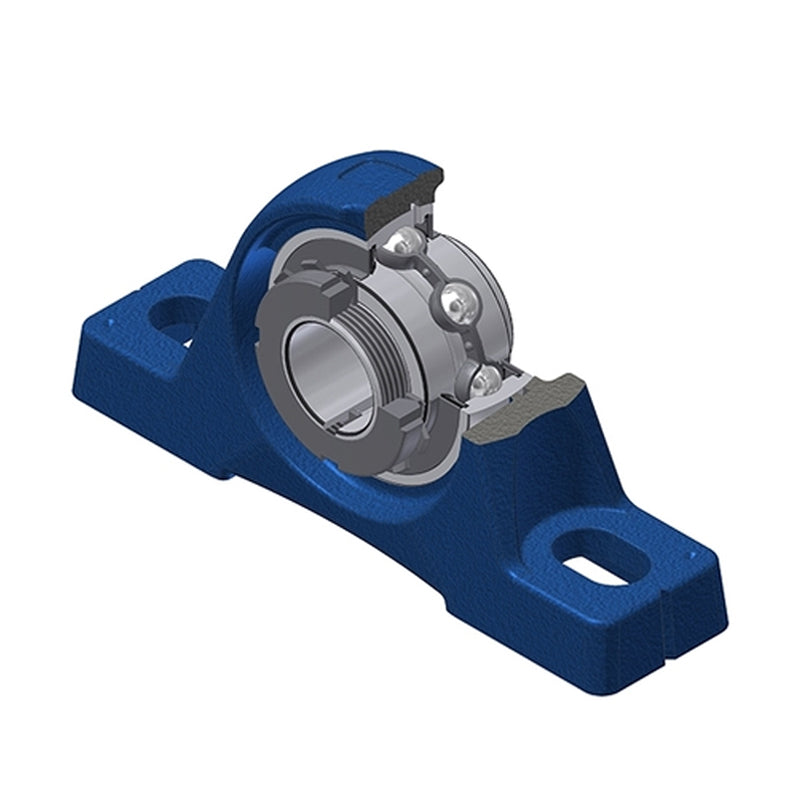

SNR UKPE215H Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 65mm Shaft - Allow 2-3 Days

SNR UKPE215H Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 65mm Shaft - Allow 2-3 Days
Regular price $294.55 ex VAT
Regular price Sale price $294.55 ex VAT
Sale Sold out

In stock

Price Break
3+ $219.43
4+ $210.57
9+ $206.13
19+ $199.49
49+ $195.05
99+ $183.97
499+ $155.16
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 65mm
A 66mm
A1 48mm
B 41mm
d1 98mm
H 82.5mm
H1 27.5mm
H2 164mm
J 210mm
L 265mm
L1 78mm
N 22mm
N1 30mm
s1 35.5mm
G R1/8″
--- Load rating
Dynamic load C 66 kN
Static load C0 49.5 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adaptor sleeve H2315
Mass 7.3 kg
