SKU: UKPE218H-SNR

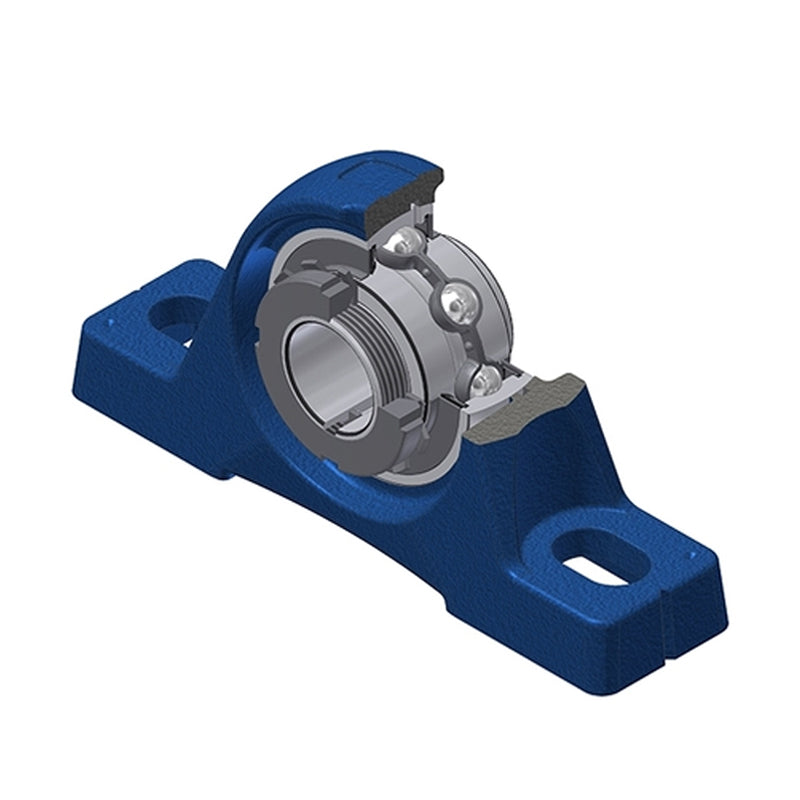

SNR UKPE218H Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 80mm Shaft - Allow 2-3 Days
SNR UKPE218H Metric Cast Iron Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Fits 80mm Shaft - Allow 2-3 Days
Regular price
$588.90
ex VAT
Regular price
Sale price
$588.90
ex VAT
In stock
Price Break
3+
$438.72
4+
$420.99
9+
$412.13
19+
$398.84
49+
$389.97
99+
$367.81
499+
$310.21
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- UKPE
- Bolt Hole Centres:
- 268mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 80mm |
| A | 85mm |
| A1 | 55mm |
| B | 48mm |
| d1 | 120mm |
| H | 101.6mm |
| H1 | 35mm |
| H2 | 200mm |
| J | 268mm |
| L | 330mm |
| L1 | 99mm |
| N | 27mm |
| N1 | 35mm |
| s1 | 42mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 96 kN |
| Static load C0 | 71.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2318 |
| Mass | 13.62 kg |
