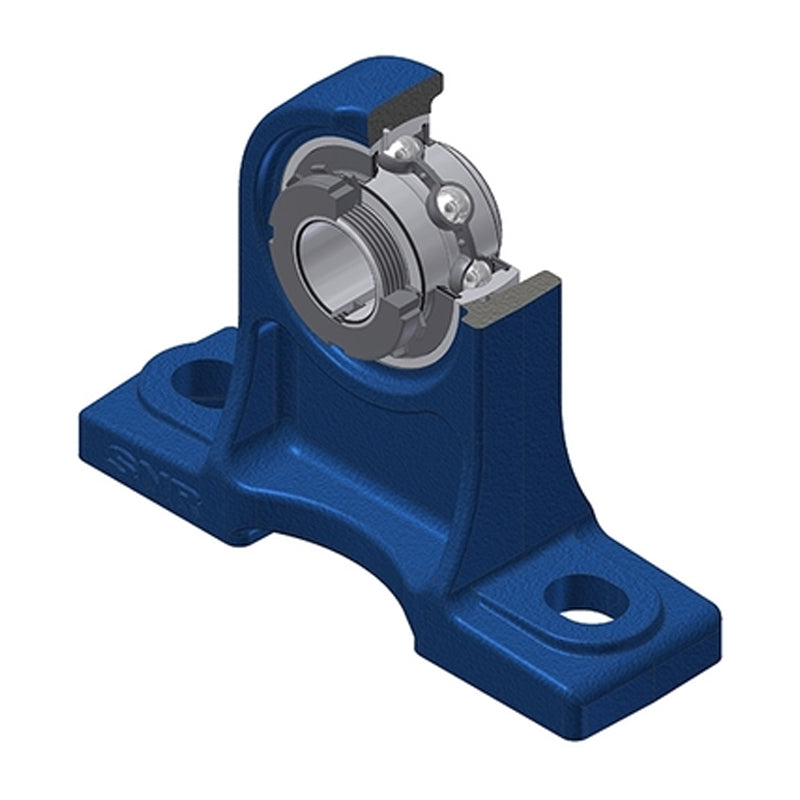

SNR UKPH206H Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 25mm Shaft - Allow 2-3 Days
SNR UKPH206H Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 25mm Shaft - Allow 2-3 Days
Regular price
$73.51
ex VAT
Regular price
Sale price
$73.51
ex VAT
In stock
Price Break
3+
$54.77
4+
$52.55
9+
$51.45
19+
$49.79
49+
$48.68
99+
$45.92
499+
$38.72
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKPH200 Series 2 Bolt Cast Iron High Centre Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- UKPH
- Bolt Hole Centres:
- 25mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| A | 50mm |
| A1 | 28mm |
| B | 25mm |
| d1 | 45mm |
| H | 90mm |
| H1 | 18mm |
| H2 | 130mm |
| J | 121mm |
| L | 165mm |
| L1 | 56mm |
| N | 17mm |
| N1 | 21mm |
| s1 | 20.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor Sleeve | H2306 |
| Mass | 1.77 kg |
