SKU: UKPH210H-SNR

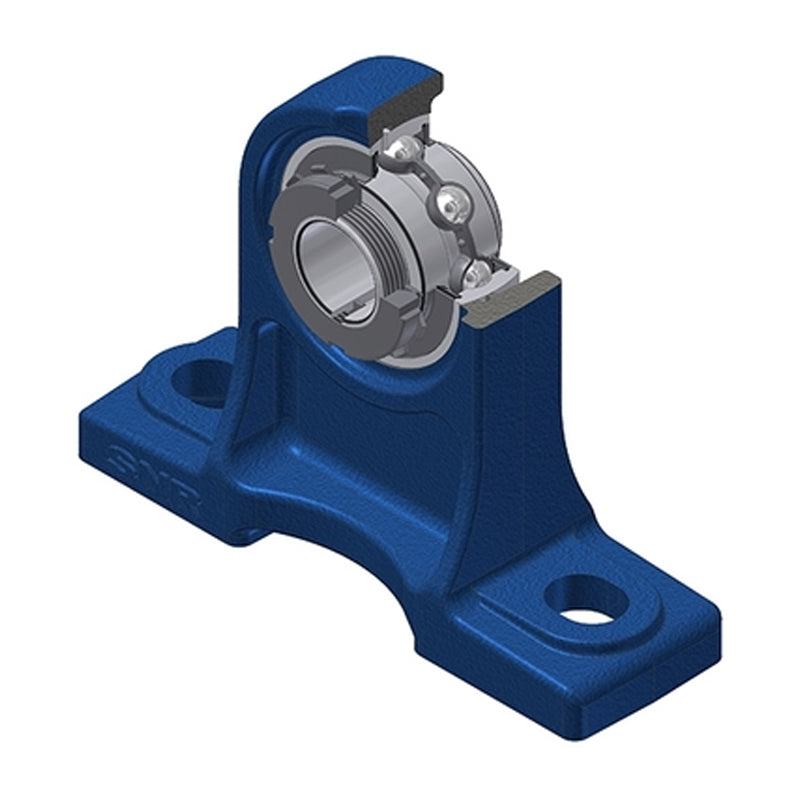

SNR UKPH210H Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
SNR UKPH210H Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
Regular price
$117.73
ex VAT
Regular price
Sale price
$117.73
ex VAT
In stock
Price Break
3+
$87.70
4+
$84.16
9+
$82.39
19+
$79.73
49+
$77.96
99+
$73.53
499+
$62.01
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKPH200 Series 2 Bolt Cast Iron High Centre Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UKPH
- Bolt Hole Centres:
- 31mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 70mm |
| A1 | 36mm |
| B | 31mm |
| d1 | 70mm |
| H | 110mm |
| H1 | 22mm |
| H2 | 165mm |
| J | 159mm |
| L | 206mm |
| L1 | 65mm |
| N | 20mm |
| N1 | 25mm |
| s1 | 27.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor Sleeve | H2310 |
| Mass | 3.73 kg |
