SKU: UKSP208HCC-SNR

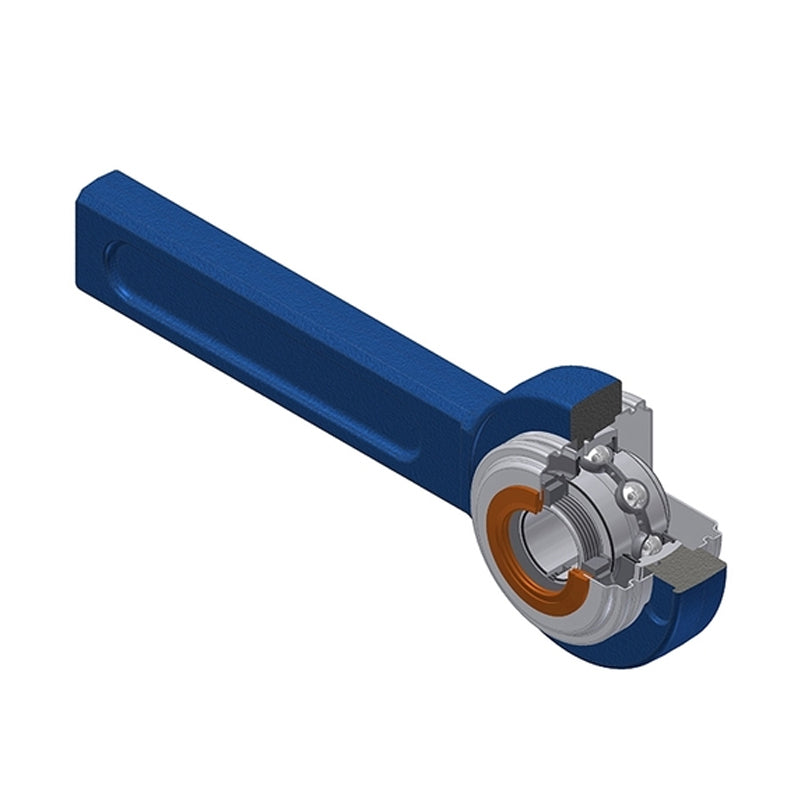

SNR UKSP208HCC Metric Cast Iron Tensioner Unit with Narrow Steel Plate Cover - Closed Version - with Insert and Adaptor Sleeve Fits 35mm Shaft - Allow 2-3 Days
SNR UKSP208HCC Metric Cast Iron Tensioner Unit with Narrow Steel Plate Cover - Closed Version - with Insert and Adaptor Sleeve Fits 35mm Shaft - Allow 2-3 Days
Regular price
$206.18
ex VAT
Regular price
Sale price
$206.18
ex VAT
In stock
Price Break
3+
$153.60
4+
$147.39
9+
$144.29
19+
$139.64
49+
$136.53
99+
$128.77
499+
$108.61
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKSP200 Series Cast Iron Tensioner Units: These bearing units are supplied with a fully sealed bearing insert fitted in the tensioner housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- UKSP
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| A | 31mm |
| B1 | 46mm |
| d1 | 58mm |
| H | 120mm |
| H2 | 61mm |
| L | 320mm |
| L1 | 260mm |
| Dz | 88mm |
| Z | 69.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Stretcher frame 2 | SPR21 |
| Stretcher frame 3 | SPR22 |
| Stretcher frame 4 | SPR24 |
| Adaptor sleeve | H2308 |
| Mass | 4.15 kg |
