SKU: UKT205HCC-SNR

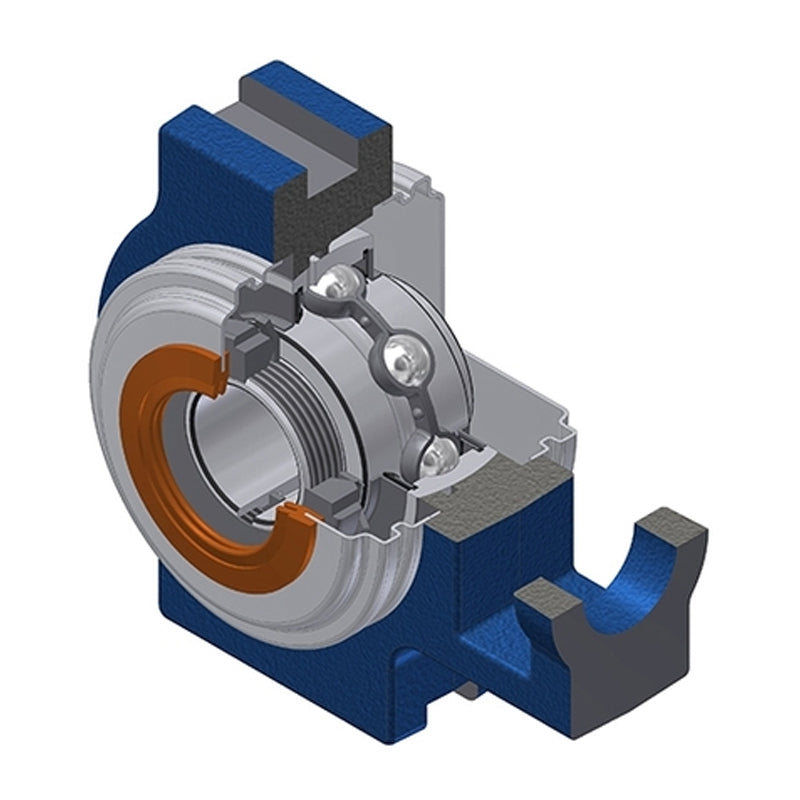

SNR UKT205HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 20mm Shaft - Closed Version - Allow 2-3 Days

SNR UKT205HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 20mm Shaft - Closed Version - Allow 2-3 Days
Regular price $117.78 ex VAT
Regular price Sale price $117.78 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.74
4+ $84.20
9+ $82.43
19+ $79.77
49+ $77.99
99+ $73.56
499+ $62.04
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 20mm
A 32mm
A1 12mm
A2 24mm
B1 35mm
d1 38mm
H 89mm
H1 76mm
H2 51mm
L 97mm
L1 62mm
L2 10mm
L3 51mm
N 19mm
N1 16mm
N2 32mm
Dz 60mm
Z 47.5mm
G M6x1
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2305
Mass 0.91 kg
