SKU: UKT205HCO-SNR

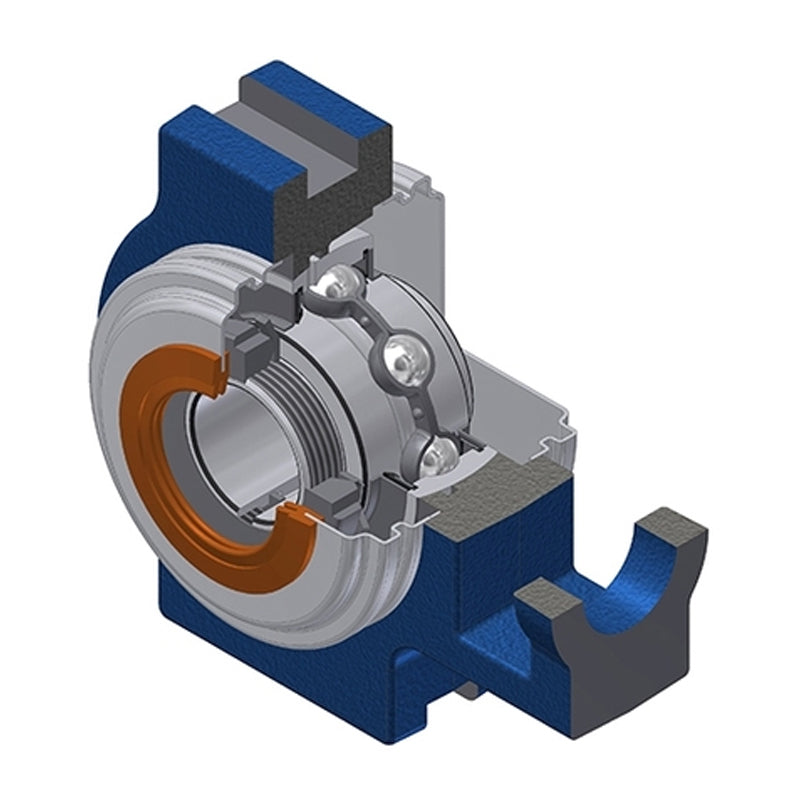

SNR UKT205HCO Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 20mm Shaft - Open Version - Allow 2-3 Days
SNR UKT205HCO Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 20mm Shaft - Open Version - Allow 2-3 Days
Regular price
$117.78
ex VAT
Regular price
Sale price
$117.78
ex VAT
In stock
Price Break
3+
$87.74
4+
$84.20
9+
$82.43
19+
$79.77
49+
$77.99
99+
$73.56
499+
$62.04
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- UKT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 32mm |
| A1 | 12mm |
| A2 | 24mm |
| B1 | 35mm |
| d1 | 38mm |
| H | 89mm |
| H1 | 76mm |
| H2 | 51mm |
| L | 97mm |
| L1 | 62mm |
| L2 | 10mm |
| L3 | 51mm |
| N | 19mm |
| N1 | 16mm |
| N2 | 32mm |
| Dz | 60mm |
| Z | 47.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2305 |
| Mass | 0.91 kg |
