SKU: UKT206D1/H2306X-NTN

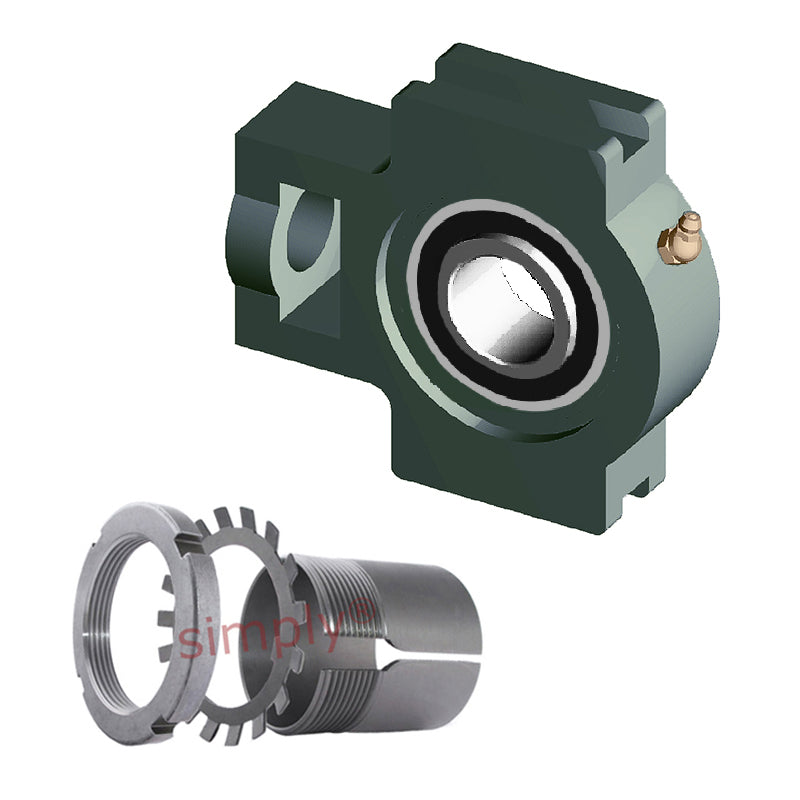

NTN UKT206D1/H2306X Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 25mm Shaft - Allow 2-3 Days
NTN UKT206D1/H2306X Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 25mm Shaft - Allow 2-3 Days
Regular price
$73.58
ex VAT
Regular price
Sale price
$73.58
ex VAT
In stock
Price Break
3+
$54.82
4+
$52.60
9+
$51.49
19+
$49.83
49+
$48.73
99+
$45.96
499+
$38.76
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UKT

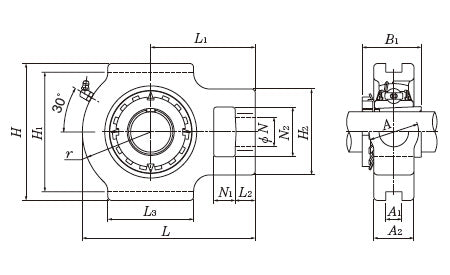

Technical
Technical
| Shaft diameter | 25mm |
|---|---|
| N<sub>1</sub> | 16mm |
| L<sub>2</sub> | 12mm |
| H<sub>2</sub> | 56mm |
| N<sub>2</sub> | 37mm |
| N | 22mm |
| L<sub>3</sub> | 57mm |
| A<sub>1</sub> | 12mm |
| H<sub>1</sub> | 89mm |
| H | 102mm |
| L | 113mm |
| A<sub>2</sub> | 28mm |
| A | 37mm |
| r | 43mm |
| L<sub>1</sub> | 70mm |
| B<sub>1</sub> | 38mm |
| Mass | 1.3 kg |
