SKU: UKT206HCC-SNR

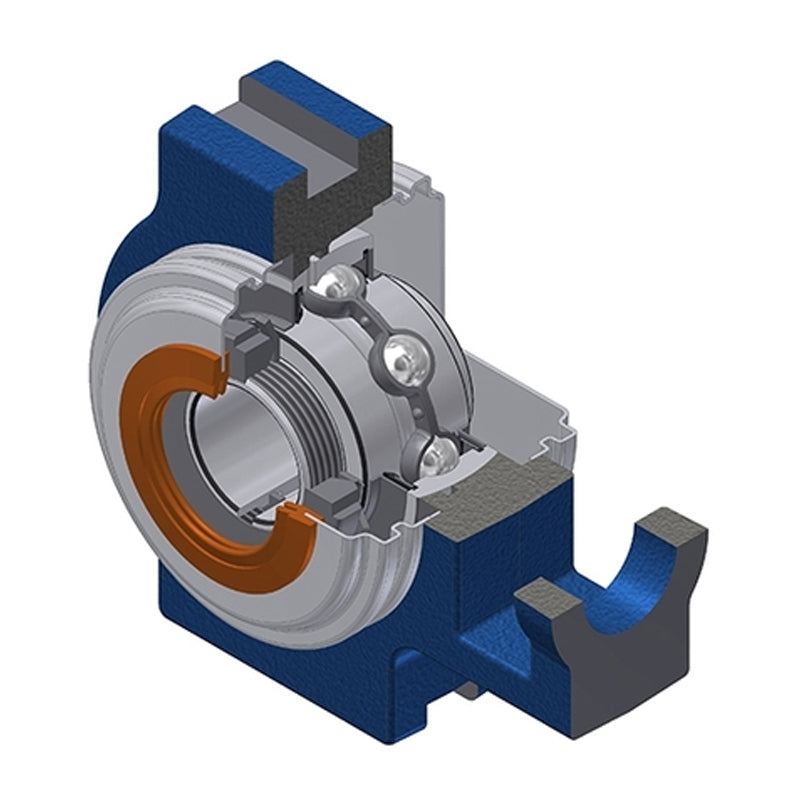

SNR UKT206HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 25mm Shaft - Closed Version - Allow 2-3 Days

SNR UKT206HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 25mm Shaft - Closed Version - Allow 2-3 Days
Regular price $103.06 ex VAT
Regular price Sale price $103.06 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.77
4+ $73.67
9+ $72.12
19+ $69.80
49+ $68.24
99+ $64.37
499+ $54.29
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 25mm
A 37mm
A1 12mm
A2 28mm
B1 38mm
d1 45mm
H 102mm
H1 89mm
H2 56mm
L 113mm
L1 70mm
L2 10mm
L3 57mm
N 22mm
N1 16mm
N2 37mm
Dz 70mm
Z 52.5mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2306
Mass 1.36 kg
