SKU: UKT207D1/H2307X-NTN
NTN UKT207D1/H2307X Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 30mm Shaft - Allow 2-3 Days
NTN UKT207D1/H2307X Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 30mm Shaft - Allow 2-3 Days
Regular price
$88.25
ex VAT
Regular price
Sale price
$88.25
ex VAT
In stock
Price Break
3+
$65.75
4+
$63.09
9+
$61.76
19+
$59.77
49+
$58.44
99+
$55.12
499+
$46.49
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description

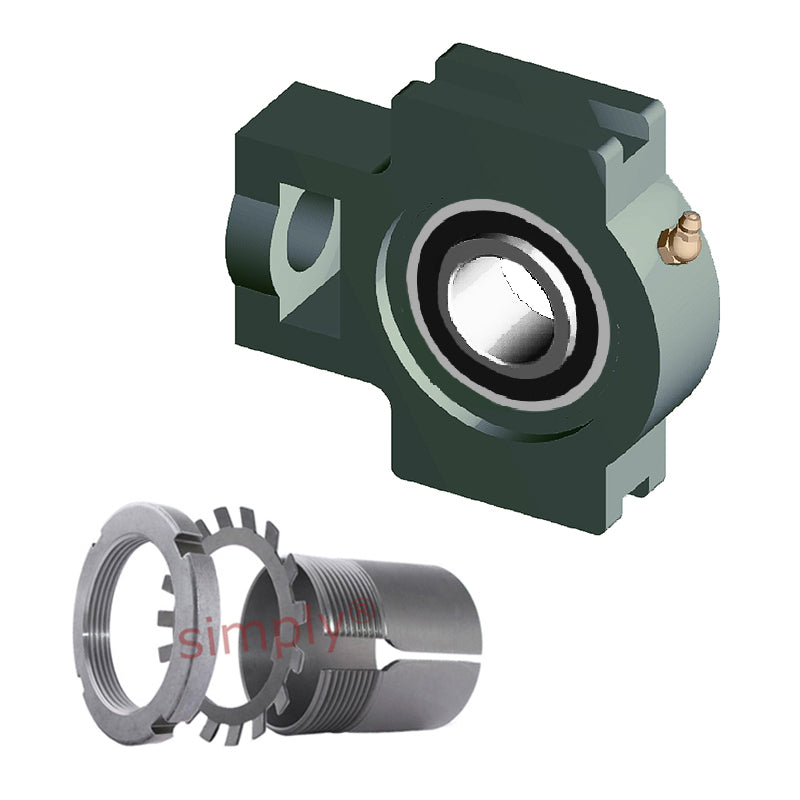

UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UKT
Technical
Technical
| Shaft diameter | 30mm |
|---|---|
| N<sub>1</sub> | 16mm |
| L<sub>2</sub> | 15mm |
| H<sub>2</sub> | 64mm |
| N<sub>2</sub> | 37mm |
| N | 22mm |
| L<sub>3</sub> | 64mm |
| A<sub>1</sub> | 12mm |
| H<sub>1</sub> | 89mm |
| H | 102mm |
| L | 129mm |
| A<sub>2</sub> | 30mm |
| A | 37mm |
| r | 51mm |
| L<sub>1</sub> | 78mm |
| B<sub>1</sub> | 43mm |
| Mass | 1.7 kg |
