SKU: UKT207HCC-SNR

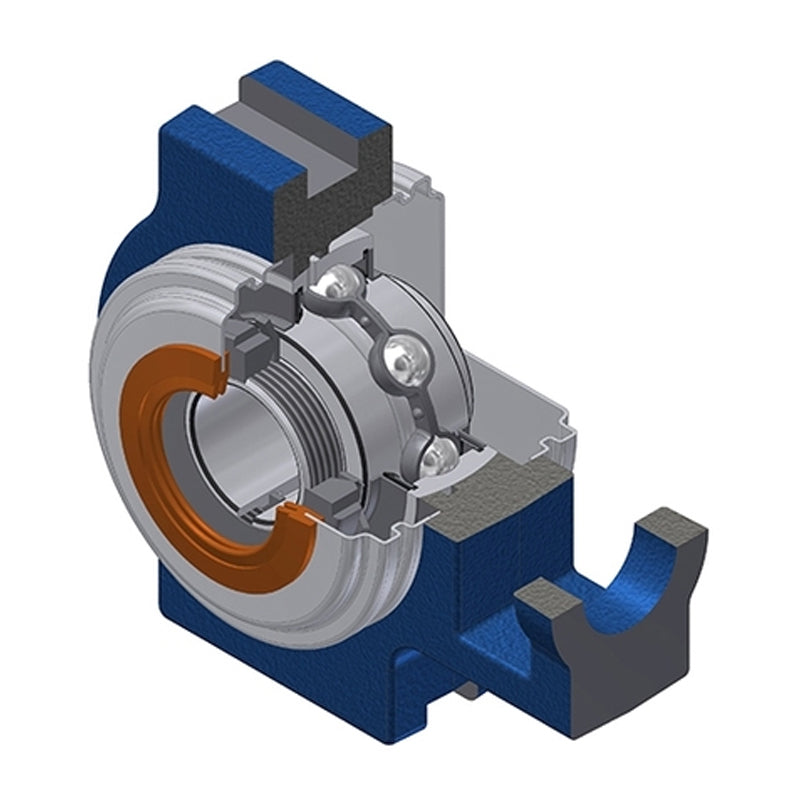

SNR UKT207HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 30mm Shaft - Closed Version - Allow 2-3 Days
SNR UKT207HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 30mm Shaft - Closed Version - Allow 2-3 Days
Regular price
$117.73
ex VAT
Regular price
Sale price
$117.73
ex VAT
In stock
Price Break
3+
$87.70
4+
$84.16
9+
$82.39
19+
$79.73
49+
$77.96
99+
$73.53
499+
$62.01
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- UKT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 37mm |
| A1 | 12mm |
| A2 | 30mm |
| B1 | 43mm |
| d1 | 52mm |
| H | 102mm |
| H1 | 89mm |
| H2 | 64mm |
| L | 129mm |
| L1 | 78mm |
| L2 | 13mm |
| L3 | 64mm |
| N | 22mm |
| N1 | 16mm |
| N2 | 37mm |
| Dz | 80mm |
| Z | 59.1mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2307 |
| Mass | 1.756 kg |
