SKU: UKT208HCO-SNR

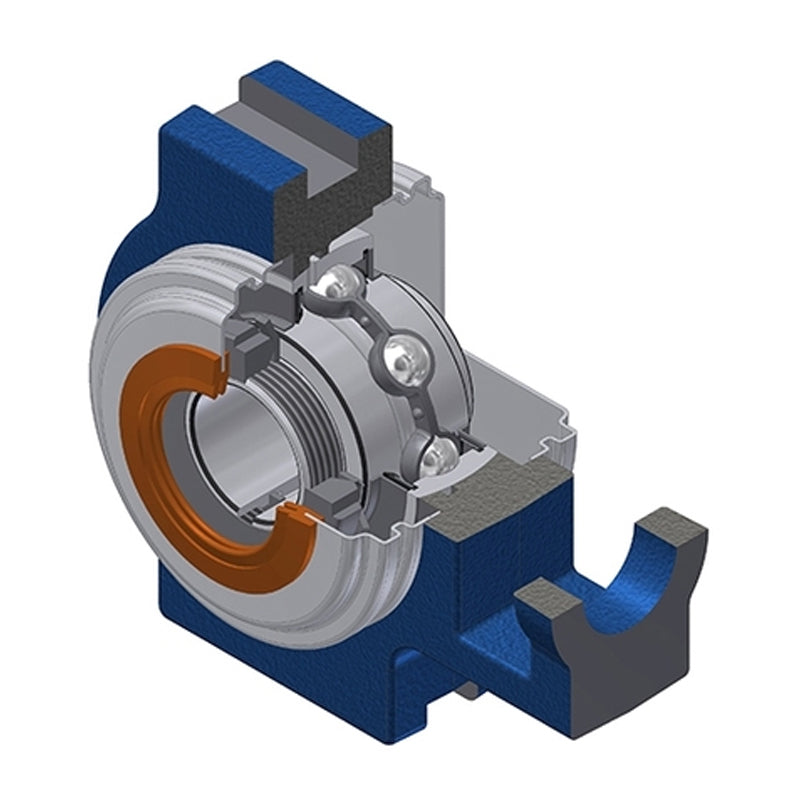

SNR UKT208HCO Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 35mm Shaft - Open Version - Allow 2-3 Days

SNR UKT208HCO Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 35mm Shaft - Open Version - Allow 2-3 Days
Regular price $117.82 ex VAT
Regular price Sale price $117.82 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.77
4+ $84.23
9+ $82.45
19+ $79.79
49+ $78.02
99+ $73.59
499+ $62.06
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 35mm
A 49mm
A1 16mm
A2 33mm
B1 46mm
d1 58mm
H 114mm
H1 102mm
H2 83mm
L 144mm
L1 88mm
L2 16mm
L3 83mm
N 29mm
N1 19mm
N2 49mm
Dz 88mm
Z 68.6mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2308
Mass 2.544 kg
