SKU: UKT209HCC-SNR

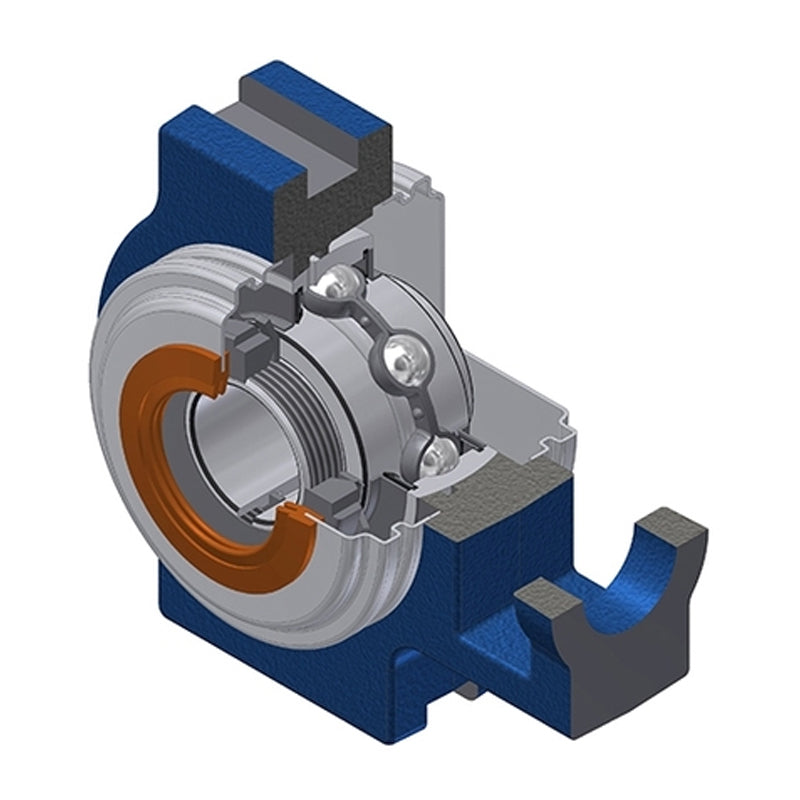

SNR UKT209HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 40mm Shaft - Closed Version - Allow 2-3 Days

SNR UKT209HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 40mm Shaft - Closed Version - Allow 2-3 Days
Regular price $117.85 ex VAT
Regular price Sale price $117.85 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.79
4+ $84.25
9+ $82.47
19+ $79.81
49+ $78.04
99+ $73.60
499+ $62.08
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 40mm
A 49mm
A1 16mm
A2 35mm
B1 50mm
d1 65mm
H 117mm
H1 102mm
H2 83mm
L 144mm
L1 87mm
L2 16mm
L3 83mm
N 29mm
N1 19mm
N2 49mm
Dz 95mm
Z 70.2mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2309
Mass 2.562 kg
