SKU: UKT209HCO-SNR

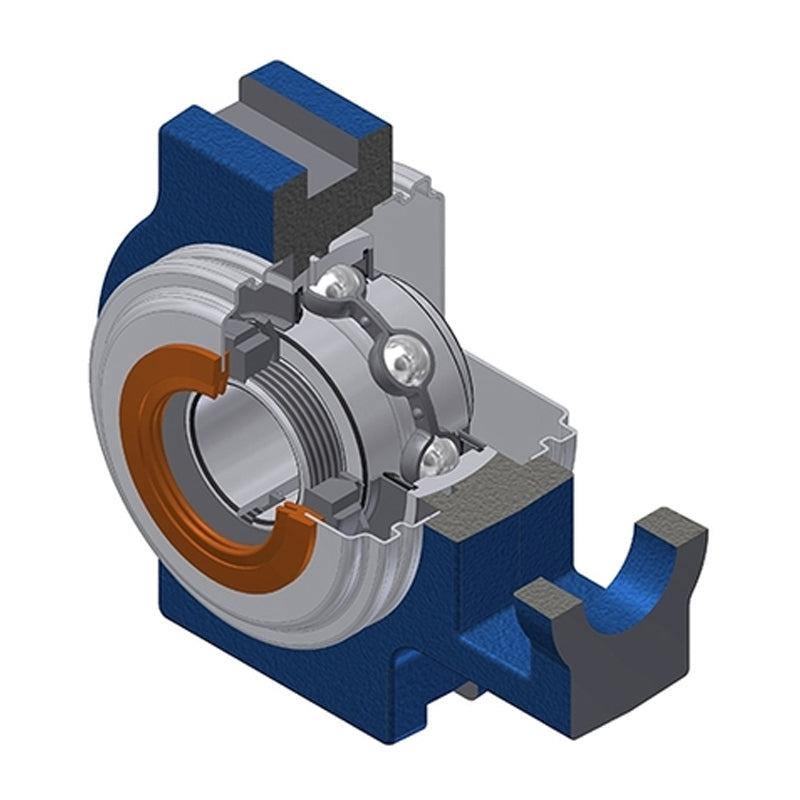

SNR UKT209HCO Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 40mm Shaft - Open Version - Allow 2-3 Days

SNR UKT209HCO Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 40mm Shaft - Open Version - Allow 2-3 Days
Regular price $132.46 ex VAT
Regular price Sale price $132.46 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.68
4+ $94.70
9+ $92.70
19+ $89.71
49+ $87.72
99+ $82.73
499+ $69.78
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 40mm
A 49mm
A1 16mm
A2 35mm
B1 50mm
d1 65mm
H 117mm
H1 102mm
H2 83mm
L 144mm
L1 87mm
L2 16mm
L3 83mm
N 29mm
N1 19mm
N2 49mm
Dz 95mm
Z 70.2mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2309
Mass 2.562 kg
