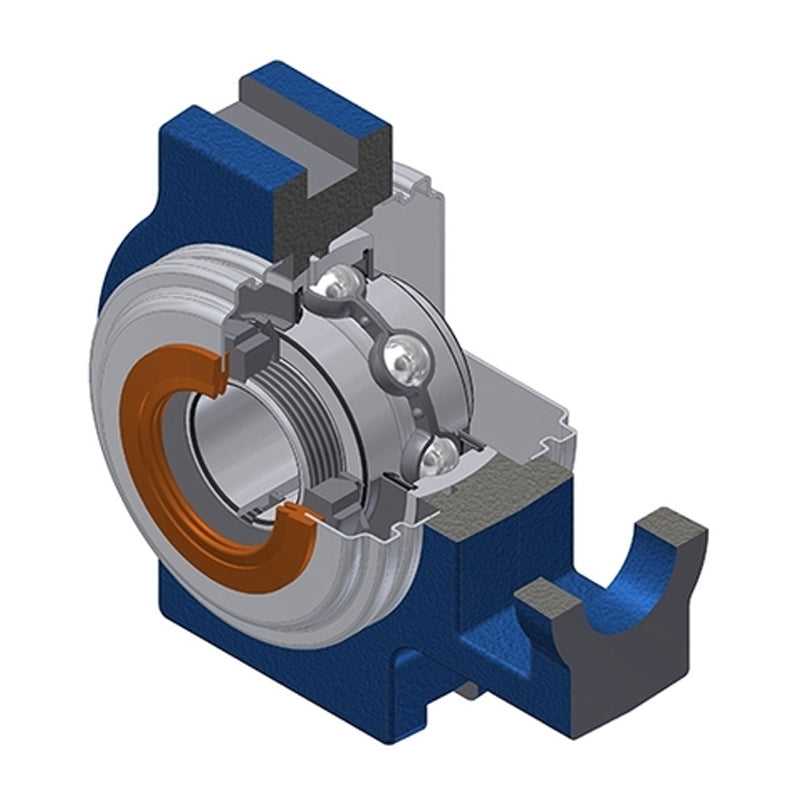

• SNR UKT210HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 45mm Shaft - Closed Version - Allow 2-3 Days
  • SNR
1 2

SKU: UKT210HCC-SNR

SNR UKT210HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 45mm Shaft - Closed Version - Allow 2-3 Days

SNR UKT210HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 45mm Shaft - Closed Version - Allow 2-3 Days
$94.84 ex VAT
$94.84 ex VAT
Sale Sold out

In stock

Price Break
3+ $63.53
4+ $59.96
9+ $59.25
19+ $58.53
49+ $57.82
99+ $57.10
499+ $53.53
999+ $52.82
1999+ $52.11
2999+ $51.39
4999+ $49.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
UKT
Technical

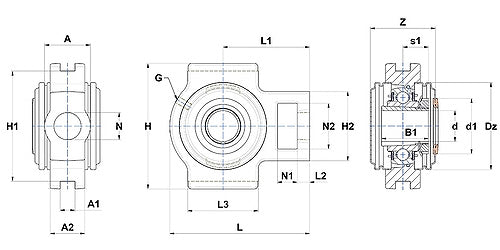

--- Dimensions
Shaft diameter d 45mm
A 49mm
A1 16mm
A2 37mm
B1 55mm
d1 70mm
H 117mm
H1 102mm
H2 83mm
L 149mm
L1 90mm
L2 16mm
L3 86mm
N 29mm
N1 19mm
N2 49mm
Dz 100mm
Z 74.6mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2310
Mass 2.752 kg
