SKU: UKT211HCO-SNR

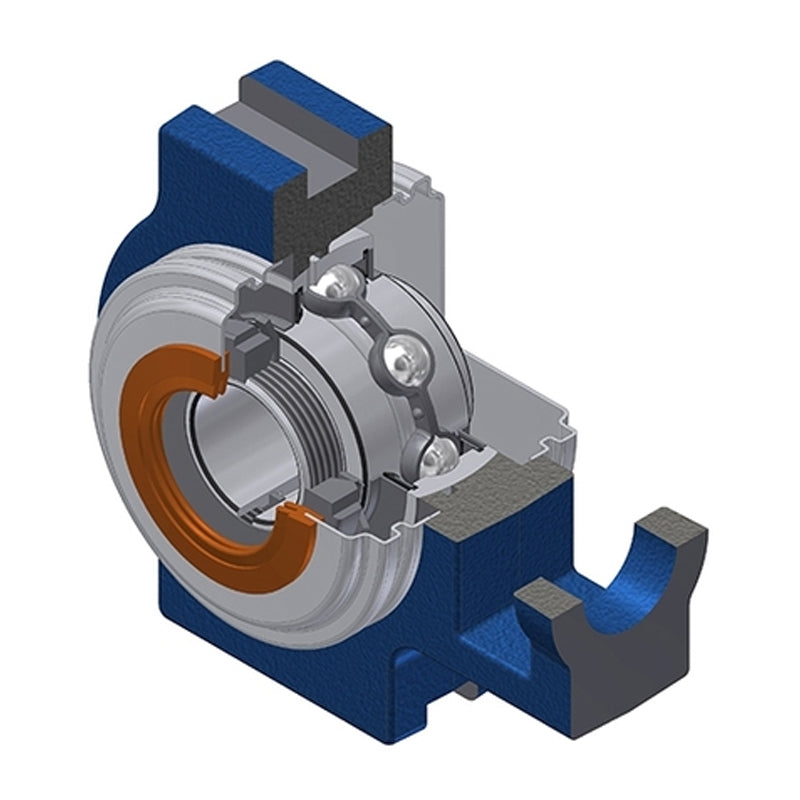

SNR UKT211HCO Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 50mm Shaft - Open Version - Allow 2-3 Days

SNR UKT211HCO Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 50mm Shaft - Open Version - Allow 2-3 Days
Regular price $176.68 ex VAT
Regular price Sale price $176.68 ex VAT
Sale Sold out

In stock

Price Break
3+ $131.62
4+ $126.30
9+ $123.64
19+ $119.66
49+ $117.00
99+ $110.35
499+ $93.07
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 50mm
A 64mm
A1 22mm
A2 38mm
B1 59mm
d1 75mm
H 146mm
H1 130mm
H2 102mm
L 171mm
L1 106mm
L2 19mm
L3 95mm
N 35mm
N1 25mm
N2 64mm
Dz 110mm
Z 76.8mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2311
Mass 4.158 kg
