SNR UKT212HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 55mm Shaft - Closed Version - Allow 2-3 Days
SNR UKT212HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 55mm Shaft - Closed Version - Allow 2-3 Days
Regular price
$206.14
ex VAT
Regular price
Sale price
$206.14
ex VAT
In stock
Price Break
3+
$153.57
4+
$147.36
9+
$144.26
19+
$139.61
49+
$136.51
99+
$128.75
499+
$108.58
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description

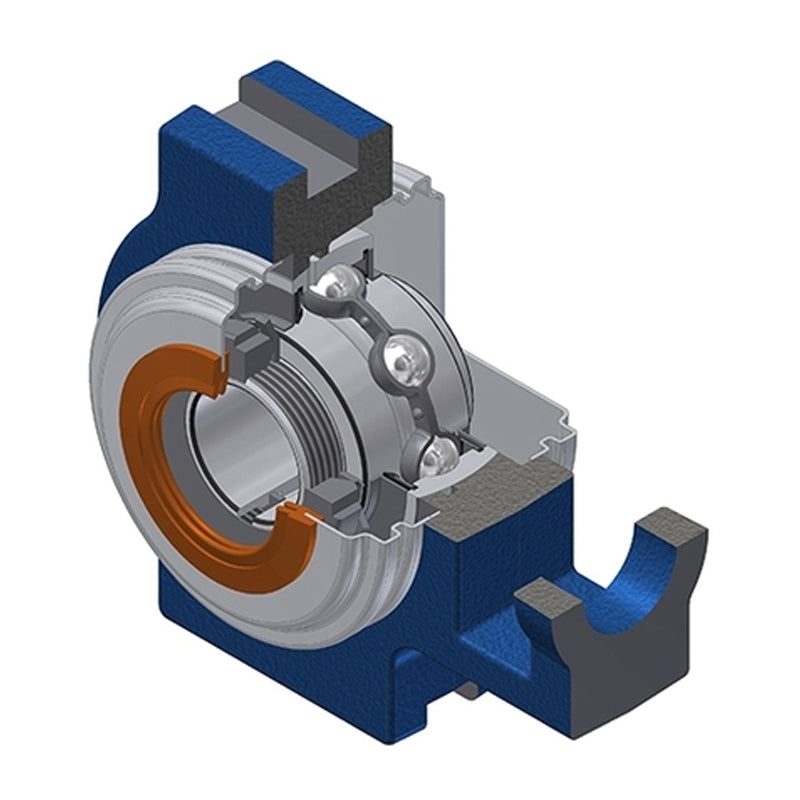

UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- UKT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 64mm |
| A1 | 22mm |
| A2 | 42mm |
| B1 | 62mm |
| d1 | 80mm |
| H | 146mm |
| H1 | 130mm |
| H2 | 102mm |
| L | 194mm |
| L1 | 119mm |
| L2 | 19mm |
| L3 | 102mm |
| N | 35mm |
| N1 | 32mm |
| N2 | 64mm |
| Dz | 120mm |
| Z | 90mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2312 |
| Mass | 4.924 kg |
