SKU: UKT212HCO-SNR

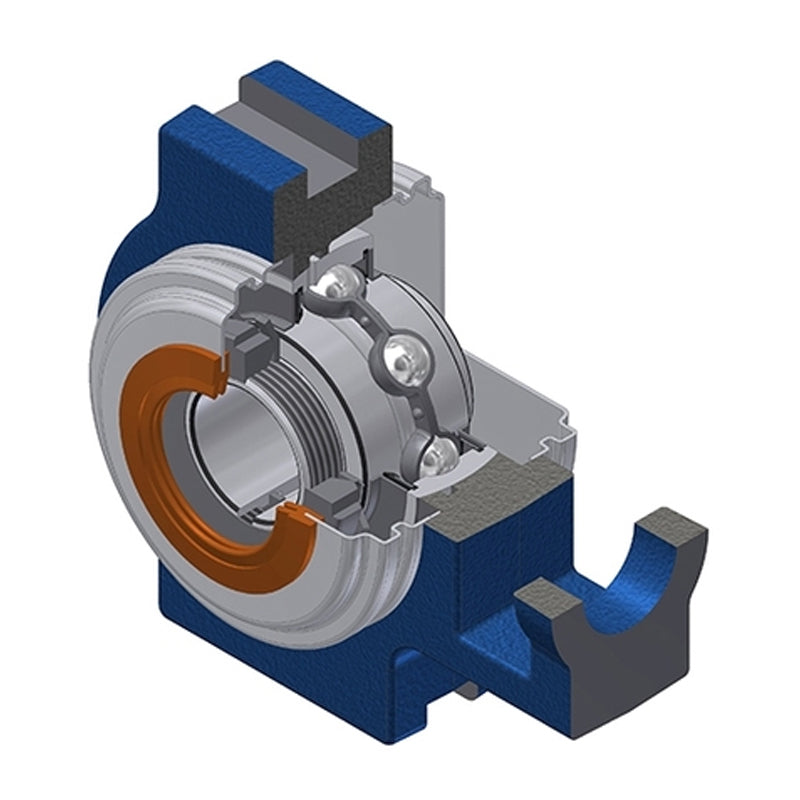

SNR UKT212HCO Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 55mm Shaft - Open Version - Allow 2-3 Days

SNR UKT212HCO Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 55mm Shaft - Open Version - Allow 2-3 Days
Regular price $206.14 ex VAT
Regular price Sale price $206.14 ex VAT
Sale Sold out

In stock

Price Break
3+ $153.57
4+ $147.36
9+ $144.26
19+ $139.61
49+ $136.51
99+ $128.75
499+ $108.58
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 55mm
A 64mm
A1 22mm
A2 42mm
B1 62mm
d1 80mm
H 146mm
H1 130mm
H2 102mm
L 194mm
L1 119mm
L2 19mm
L3 102mm
N 35mm
N1 32mm
N2 64mm
Dz 120mm
Z 90mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2312
Mass 4.924 kg
