• SNR UKT213HN Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 60mm Shaft - Allow 2-3 Days
  • SNR
1 2

SKU: UKT213HN-SNR

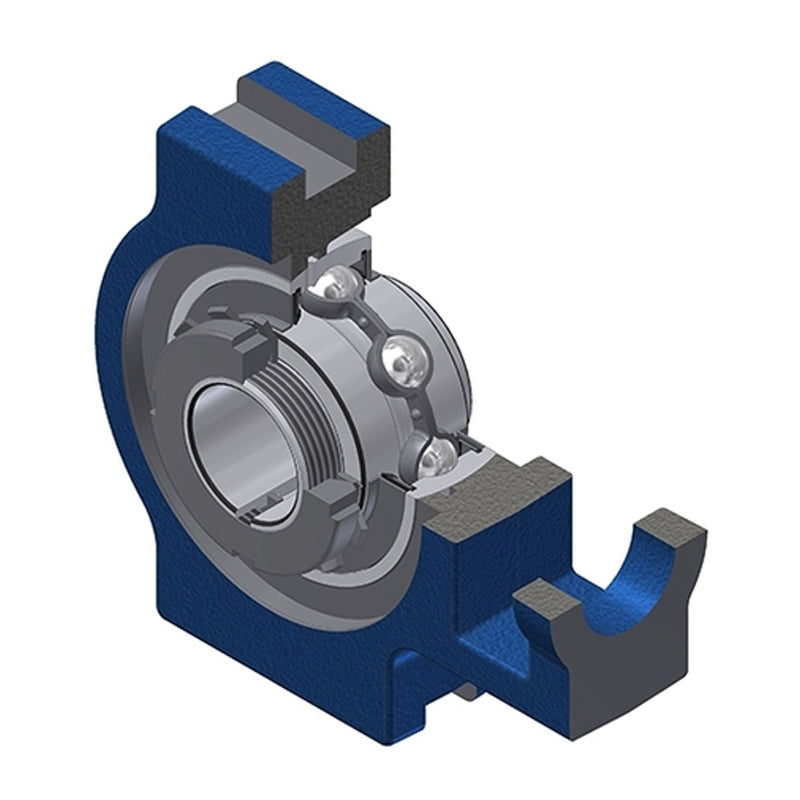

SNR UKT213HN Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 60mm Shaft - Allow 2-3 Days

SNR UKT213HN Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 60mm Shaft - Allow 2-3 Days
$155.83 ex VAT
$155.83 ex VAT
Sale Sold out

In stock

Price Break
3+ $104.38
4+ $98.51
9+ $97.34
19+ $96.17
49+ $95.00
99+ $93.82
499+ $87.96
999+ $86.79
1999+ $85.61
2999+ $84.44
4999+ $82.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
UKT
Technical

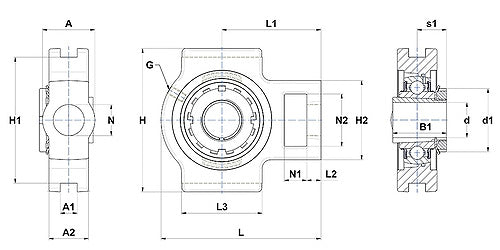

--- Dimensions
Shaft diameter d 60mm
A 70mm
A1 26mm
A2 44mm
B1 65mm
d1 85mm
H 167mm
H1 151mm
H2 111mm
L 224mm
L1 137mm
L2 21mm
L3 121mm
N 41mm
N1 32mm
N2 70mm
s1 32mm
G M6x1
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2313
Mass 6.65 kg
