SKU: UKT308D1/HS2308X-NTN

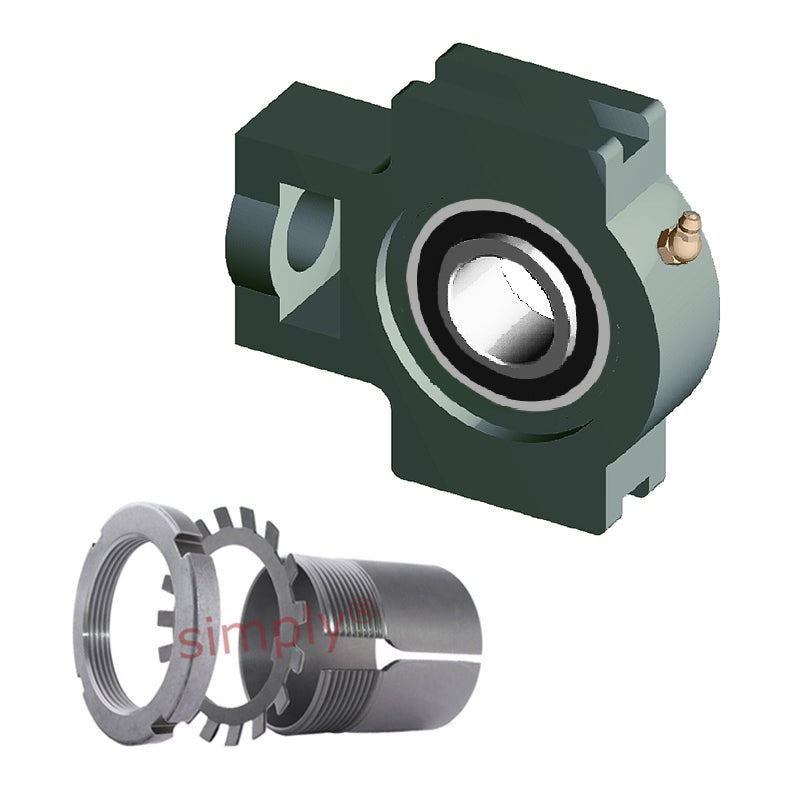

NTN UKT308D1/HS2308X Imperial Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 1-3/8 inch Shaft - Allow 2-3 Days
NTN UKT308D1/HS2308X Imperial Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 1-3/8 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description
UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- UKT
Technical
Technical
| Shaft diameter | 1-3/8 inch |
|---|---|
| N<sub>1</sub> | 7/8 inch |
| L<sub>2</sub> | 3/4 inch |
| H<sub>2</sub> | 3-9/32 inch |
| N<sub>2</sub> | 1-31/32 inch |
| N | 1-1/4 inch |
| L<sub>3</sub> | 3-1/2 inch |
| A<sub>1</sub> | 0.709 inch |
| H<sub>1</sub> | 4-13/32 inch |
| H | 4-7/8 inch |
| L | 6-3/8 inch |
| A<sub>2</sub> | 1-11/32 inch |
| A | 1-31/32 inch |
| r | 2-7/16 inch |
| L<sub>1</sub> | 3-15/16 inch |
| B<sub>1</sub> | 1.811 inch |
| Mass | 6.6 lbs |
