SKU: UKT309D1/HA2309-NTN

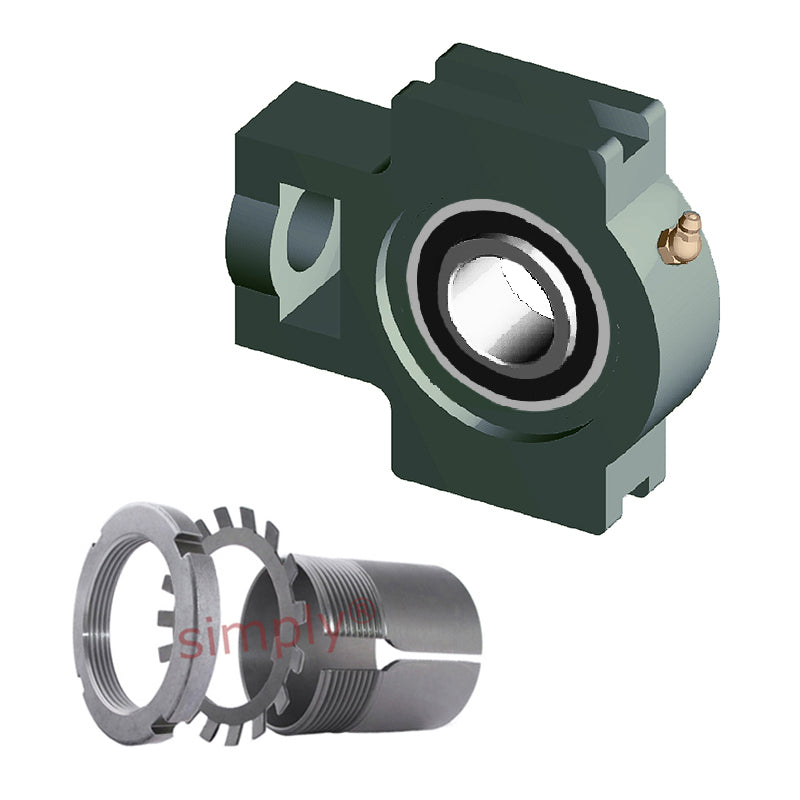

NTN UKT309D1/HA2309 Imperial Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 1-7/16 inch Shaft - Allow 2-3 Days
NTN UKT309D1/HA2309 Imperial Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 1-7/16 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description
UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 36.49mm = 1.436 (1-7/16) inch
- Style:
- UKT
Technical
Technical
| Shaft diameter | 1-7/16 inch |
|---|---|
| N<sub>1</sub> | 15/16 inch |
| L<sub>2</sub> | 25/32 inch |
| H<sub>2</sub> | 3-17/32 inch |
| N<sub>2</sub> | 2-5/32 inch |
| N | 1-11/32 inch |
| L<sub>3</sub> | 3-13/16 inch |
| A<sub>1</sub> | 0.709 inch |
| H<sub>1</sub> | 4-59/64 inch |
| H | 5-7/16 inch |
| L | 7 inch |
| A<sub>2</sub> | 1-1/2 inch |
| A | 2-5/32 inch |
| r | 2-11/16 inch |
| L<sub>1</sub> | 4-11/32 inch |
| B<sub>1</sub> | 1.969 inch |
| Mass | 8.8 lbs |
