SKU: UKT311D1/H2311X-NTN

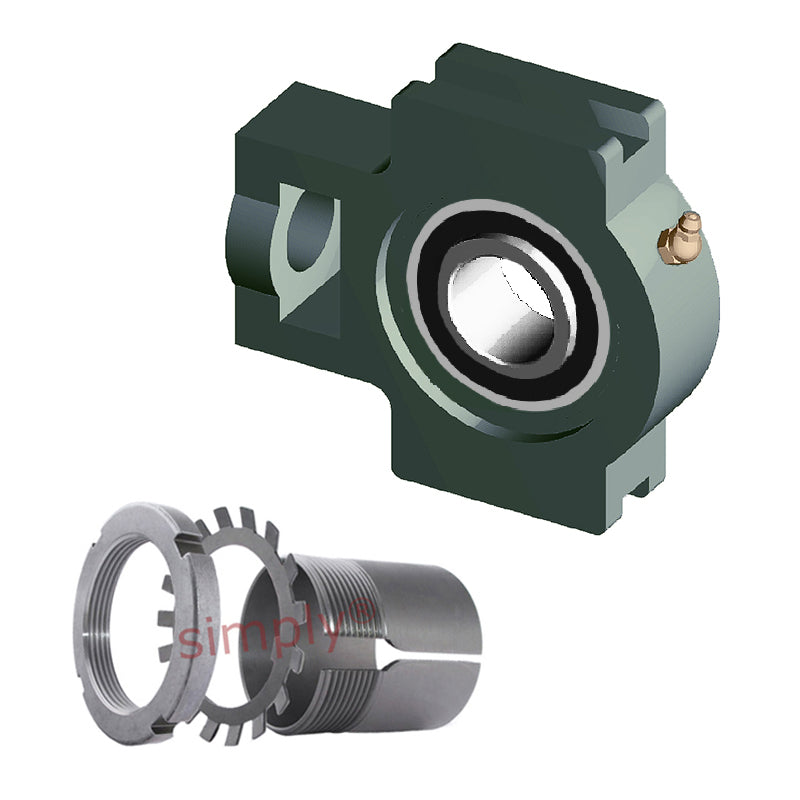

NTN UKT311D1/H2311X Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
NTN UKT311D1/H2311X Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
Regular price
$235.56
ex VAT
Regular price
Sale price
$235.56
ex VAT
In stock
Price Break
3+
$175.49
4+
$168.40
9+
$164.85
19+
$159.53
49+
$155.99
99+
$147.13
499+
$124.08
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UKT
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| N<sub>1</sub> | 29mm |
| L<sub>2</sub> | 23mm |
| H<sub>2</sub> | 105mm |
| N<sub>2</sub> | 66mm |
| N | 39mm |
| L<sub>3</sub> | 115mm |
| A<sub>1</sub> | 22mm |
| H<sub>1</sub> | 150mm |
| H | 163mm |
| L | 207mm |
| A<sub>2</sub> | 44mm |
| A | 66mm |
| r | 80mm |
| L<sub>1</sub> | 127mm |
| B<sub>1</sub> | 59mm |
| Mass | 6.3 kg |
