SKU: UKT312D1/HS2312-NTN

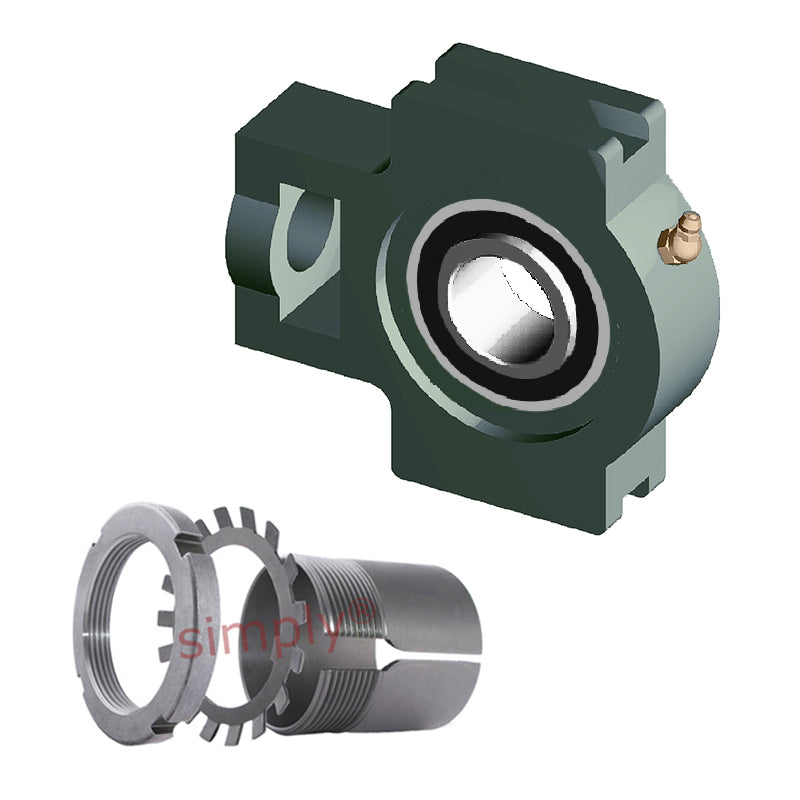

NTN UKT312D1/HS2312 Imperial Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 2-1/8 inch Shaft - Allow 2-3 Days
NTN UKT312D1/HS2312 Imperial Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 2-1/8 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description
UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Style:
- UKT
Technical
Technical
| Shaft diameter | 2-1/8 inch |
|---|---|
| N<sub>1</sub> | 1-7/32 inch |
| L<sub>2</sub> | 31/32 inch |
| H<sub>2</sub> | 4-7/16 inch |
| N<sub>2</sub> | 2-25/32 inch |
| N | 1-5/8 inch |
| L<sub>3</sub> | 4-27/32 inch |
| A<sub>1</sub> | 0.866 inch |
| H<sub>1</sub> | 6-19/64 inch |
| H | 7 inch |
| L | 8-21/32 inch |
| A<sub>2</sub> | 1-13/16 inch |
| A | 2-25/32 inch |
| r | 3-11/32 inch |
| L<sub>1</sub> | 5-5/16 inch |
| B<sub>1</sub> | 2.441 inch |
| Mass | 17 lbs |
