SKU: UKT316H-SNR

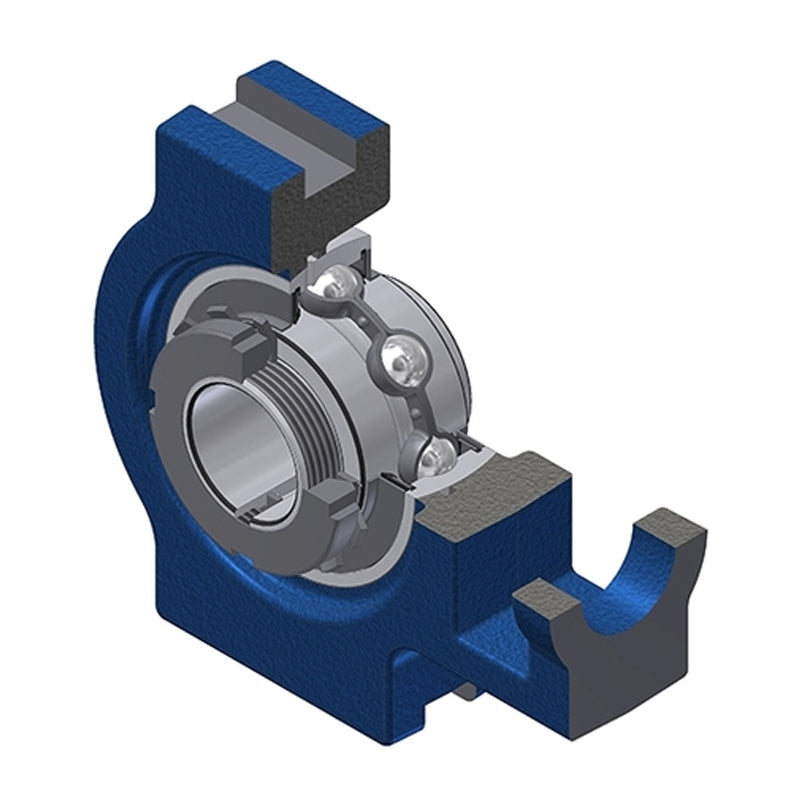

SNR UKT316H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 70mm Shaft - Allow 2-3 Days

SNR UKT316H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 70mm Shaft - Allow 2-3 Days
Regular price $589.15 ex VAT
Regular price Sale price $589.15 ex VAT
Sale Sold out

In stock

Price Break
3+ $438.91
4+ $421.17
9+ $412.31
19+ $399.01
49+ $390.14
99+ $367.97
499+ $310.34
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 70mm
A 102mm
A1 30mm
A2 60mm
B1 78mm
d1 105mm
H 230mm
H1 204mm
H2 150mm
L 282mm
L1 174mm
L2 30mm
L3 160mm
N 53mm
N1 42mm
N2 98mm
s1 44.5mm
G M10x1
--- Load rating
Dynamic load C 122.85 kN
Static load C0 86.5 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2316
Mass 15.99 kg
