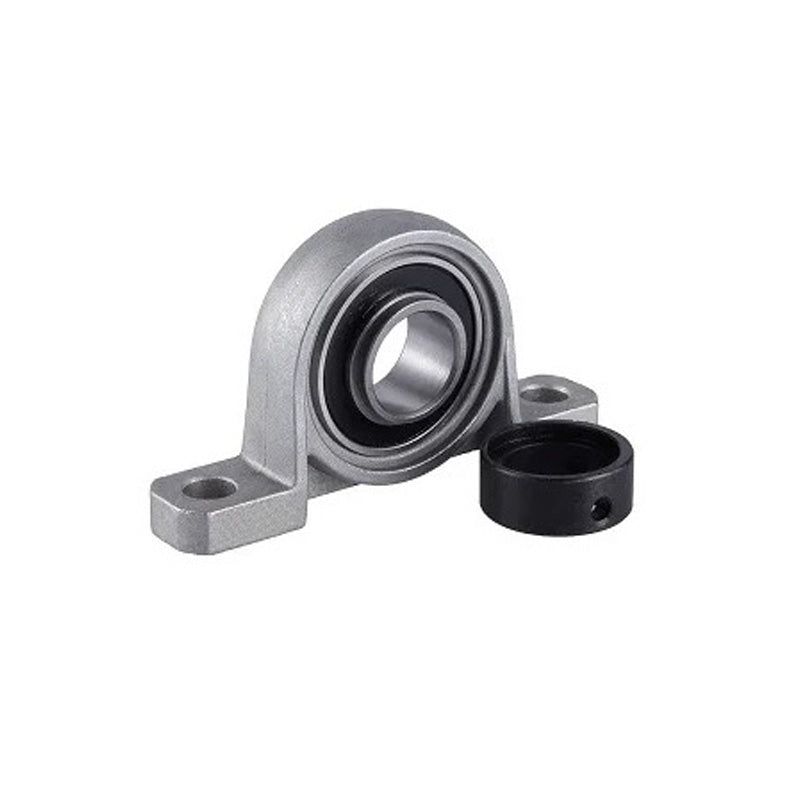

UP000 2 Bolt Aluminium Pillow Block with 10mm Bore Eccentric Collar Insert

Name: UP000 2 Bolt Aluminium Pillow Block with 10mm Bore Eccentric Collar Insert
Brand: Gen
SKU: UP000
Price: 13.51 USD
Availability: InStock

$13.51 ex VAT

Sale Sold out

In stock

Price Break

3+ $9.05

4+ $8.54

9+ $8.44

19+ $8.34

49+ $8.24

99+ $8.14

499+ $7.63

999+ $7.53

1999+ $7.42

2999+ $7.32

4999+ $7.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

UP Series 2 Bolt Cast Aluminium Pillow Block Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast aluminium housing. The bearing insert which self aligns in the housing has an eccentric collar and grub screws to allow locking to the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 10mm
Style:: UP
Bolt Hole Centres:: 53mm

Technical

Shaft Diameter	10mm
H	18mm
L	67mm
J	53mm
A	16mm
N	7mm
H1	6mm
H2	35mm
B	14mm
s	4mm
Recommended Mounting Bolt	M6
Weight	0.08 kg
Dynamic load	4606 N ~ 469.681 kgf
Static load	1906 N ~ 194.358 kgf
