• UP001 2 Bolt Aluminium Pillow Block with 12mm Bore Eccentric Collar Insert
1 1

SKU: UP001

UP001 2 Bolt Aluminium Pillow Block with 12mm Bore Eccentric Collar Insert

UP001 2 Bolt Aluminium Pillow Block with 12mm Bore Eccentric Collar Insert
$14.02 ex VAT
$14.02 ex VAT
Sale Sold out

In stock

Price Break
3+ $9.39
4+ $8.86
9+ $8.75
19+ $8.65
49+ $8.54
99+ $8.44
499+ $7.91
999+ $7.80
1999+ $7.70
2999+ $7.59
4999+ $7.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

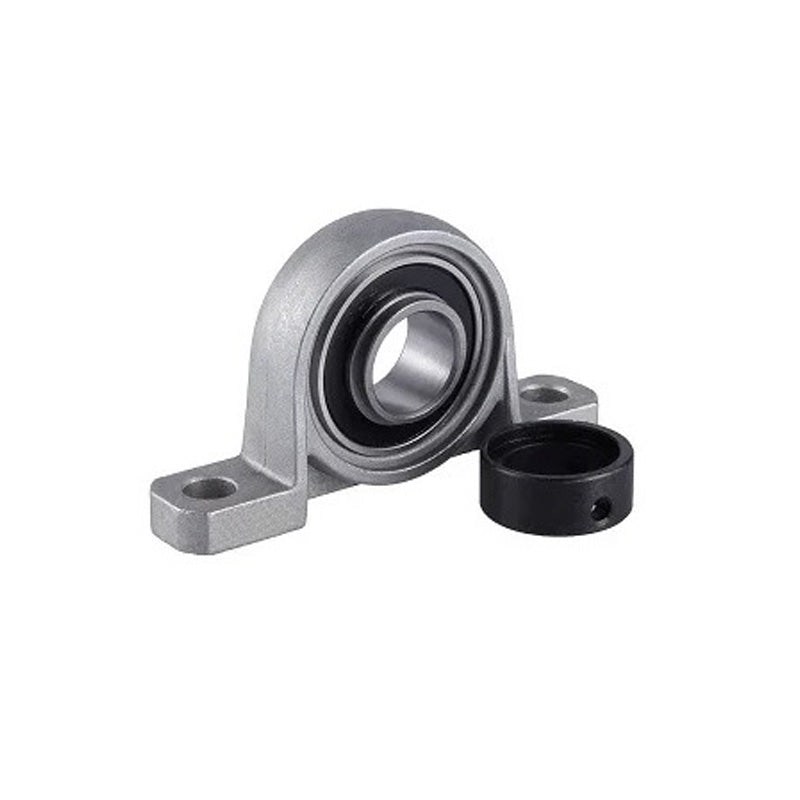

UP Series 2 Bolt Cast Aluminium Pillow Block Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast aluminium housing. The bearing insert which self aligns in the housing has an eccentric collar and grub screws to allow locking to the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Style:
UP
Bolt Hole Centres:
56mm
Technical
Shaft Diameter 12mm
H 19mm
L 71mm
J 56mm
A 16mm
N 7mm
H1 6mm
H2 38mm
B 14.5mm
s 4mm
Recommended Mounting Bolt M6
Weight 0.1 kg
Dynamic load 5096 N ~ 519.647 kgf
Static load 2401 N ~ 244.834 kgf
