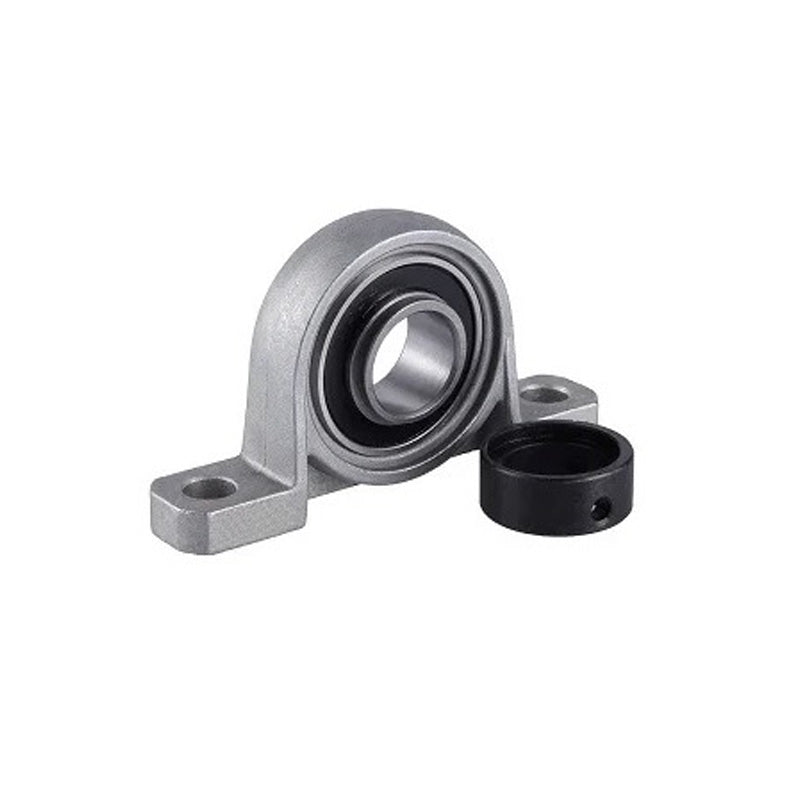

• UP004 2 Bolt Aluminium Pillow Block with 20mm Bore Eccentric Collar Insert
1 1

SKU: UP004

UP004 2 Bolt Aluminium Pillow Block with 20mm Bore Eccentric Collar Insert

UP004 2 Bolt Aluminium Pillow Block with 20mm Bore Eccentric Collar Insert
$19.11 ex VAT
$19.11 ex VAT
Sale Sold out

In stock

Price Break
3+ $12.80
4+ $12.08
9+ $11.94
19+ $11.79
49+ $11.65
99+ $11.51
499+ $10.79
999+ $10.64
1999+ $10.50
2999+ $10.36
4999+ $10.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UP Series 2 Bolt Cast Aluminium Pillow Block Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast aluminium housing. The bearing insert which self aligns in the housing has an eccentric collar and grub screws to allow locking to the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Style:
UP
Bolt Hole Centres:
80mm
Technical
Shaft Diameter 20mm
H 28mm
L 100mm
J 80mm
A 20mm
N 10mm
H1 9mm
H2 55mm
B 21mm
s 6mm
Recommended Mounting Bolt M8
Weight 0.26 kg
Dynamic load 9359 N ~ 954.352 kgf
Static load 5047 N ~ 514.651 kgf
