• UP006 2 Bolt Aluminium Pillow Block with 30mm Bore Eccentric Collar Insert
1 1

SKU: UP006

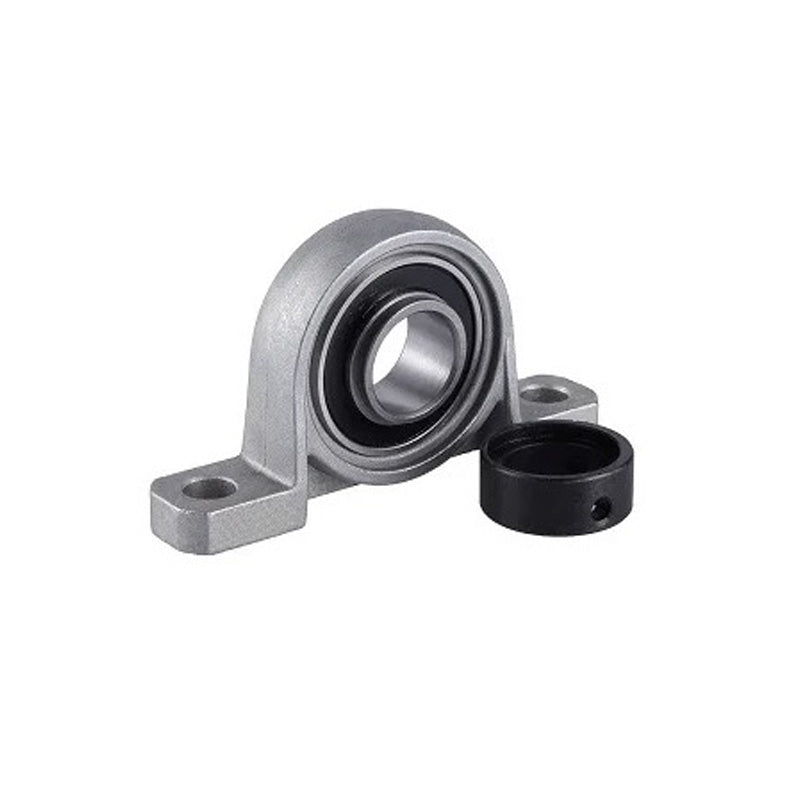

UP006 2 Bolt Aluminium Pillow Block with 30mm Bore Eccentric Collar Insert

UP006 2 Bolt Aluminium Pillow Block with 30mm Bore Eccentric Collar Insert
$21.60 ex VAT
$21.60 ex VAT
Sale Sold out

In stock

Price Break
3+ $14.47
4+ $13.66
9+ $13.49
19+ $13.33
49+ $13.17
99+ $13.01
499+ $12.19
999+ $12.03
1999+ $11.87
2999+ $11.71
4999+ $11.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UP Series 2 Bolt Cast Aluminium Pillow Block Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast aluminium housing. The bearing insert which self aligns in the housing has an eccentric collar and grub screws to allow locking to the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Style:
UP
Bolt Hole Centres:
106mm
Technical
Shaft Diameter 30mm
H 36mm
L 132mm
J 106mm
A 26mm
N 13mm
H1 11mm
H2 70mm
B 24.5mm
s 6.5mm
Recommended Mounting Bolt M10
Weight 0.5 kg
Dynamic load 13230 N ~ 1349.085 kgf
Static load 8281 N ~ 844.427 kgf
