SKU: US204-12G2-SNR

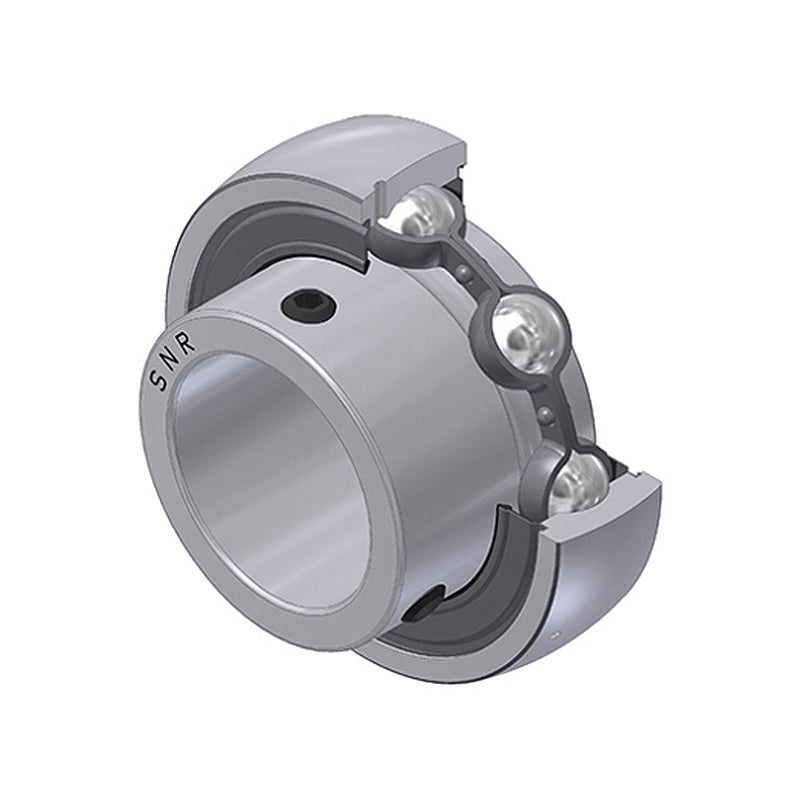

SNR US204-12G2 Imperial Flatback Spherical Outer Bearing Insert 3/4 inch Bore 47mm Outside Diameter with Grub Screws

Name: SNR US204-12G2 Imperial Flatback Spherical Outer Bearing Insert 3/4 inch Bore 47mm Outside Diameter with Grub Screws
Brand: SNR
SKU: US204-12G2-SNR
Price: 16.61 USD
Availability: InStock

$16.61 ex VAT

Sale Sold out

Equivalent to: SB204-12

In stock

Price Break

3+ $11.13

5+ $10.50

9+ $10.38

19+ $10.25

49+ $10.13

74+ $10.00

99+ $9.38

199+ $9.25

249+ $9.13

499+ $9.00

999+ $8.75

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Thread Size:: 1/4-28UNF
Inside Diameter:: 19.05mm = 0.75 (3/4) inch
Outside Diameter:: 47mm
Width:: 25mm
Style:: US

Technical

d	3/4 inch
d	19.05mm
D	47mm
C	14mm
B	25mm
S	7mm
m	5mm
C1	4mm
r min	0.6mm
G	1/4-28UNF
Wrench Size	1/8 inch
Set screw torque	3.7 Nm
Min Temp	-20 deg C
Max Temp	100 deg C
Dynamic load rating C	12.8kN
Static load rating C0	6.7kN
Weight	0.1kg
