SKU: US205-16G2-SNR

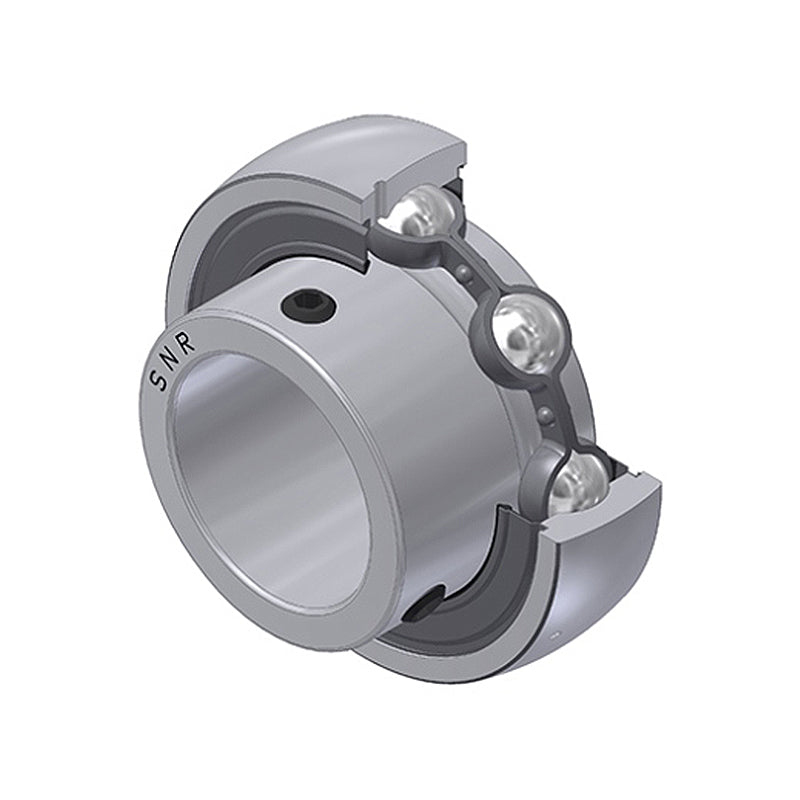

SNR US205-16G2 Imperial Flatback Spherical Outer Bearing Insert 1 inch Bore 52mm Outside Diameter with Grub Screws

Name: SNR US205-16G2 Imperial Flatback Spherical Outer Bearing Insert 1 inch Bore 52mm Outside Diameter with Grub Screws
Brand: SNR
SKU: US205-16G2-SNR
Price: 17.58 USD
Availability: InStock

$17.58 ex VAT

Sale Sold out

Equivalent to: SB205-16

Low stock

Price Break

3+ $11.77

5+ $11.11

9+ $10.98

19+ $10.85

49+ $10.72

74+ $10.58

99+ $9.92

199+ $9.79

249+ $9.66

499+ $9.53

999+ $9.26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Thread Size:: 1/4-28UNF
Inside Diameter:: 25.4mm = 1 inch
Outside Diameter:: 52mm
Width:: 27mm
Style:: US

Technical

d	1 inch
d	25.4mm
D	52mm
C	15mm
B	27mm
S	7.5mm
m	5.5mm
C1	4.3mm
r min	0.6mm
G	1/4-28UNF
Wrench Size	1/8 inch
Set screw torque	3.7 Nm
Min Temp	-20 deg C
Max Temp	100 deg C
Dynamic load rating C	14kN
Static load rating C0	7.9kN
Weight	0.2kg
