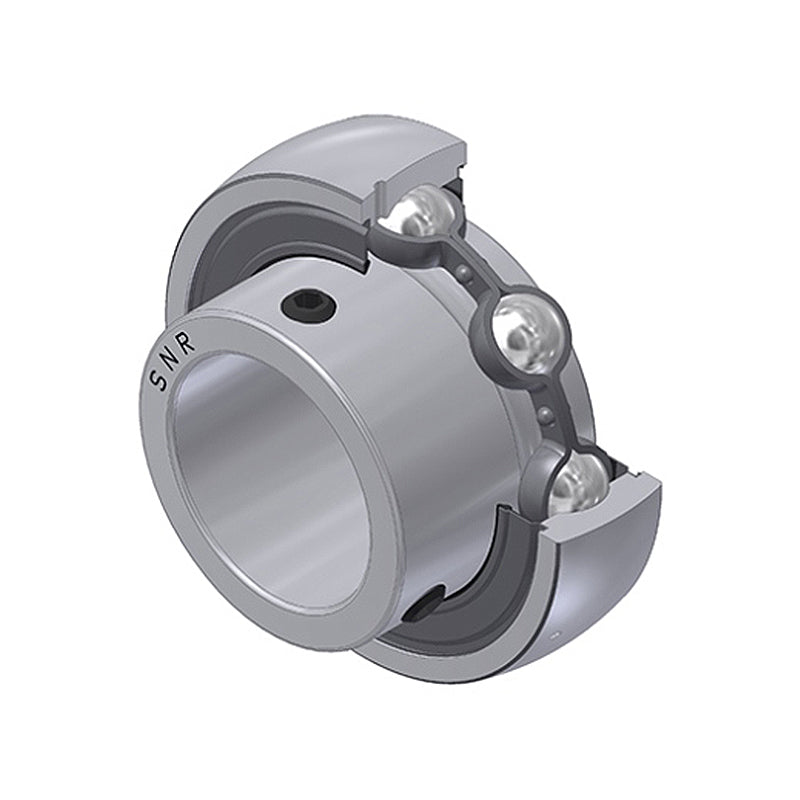

• SNR US207G2 Metric Flatback Spherical Outer Bearing Insert 35mm Bore 72mm Outside Diameter with Grub Screws
  • SNR
1 2

SKU: US207G2-SNR

SNR US207G2 Metric Flatback Spherical Outer Bearing Insert 35mm Bore 72mm Outside Diameter with Grub Screws

SNR US207G2 Metric Flatback Spherical Outer Bearing Insert 35mm Bore 72mm Outside Diameter with Grub Screws
$23.48 ex VAT
$23.48 ex VAT
Sale Sold out

Equivalent to: SB207

In stock

Price Break
3+ $15.73
5+ $14.85
9+ $14.67
19+ $14.49
49+ $14.32
74+ $14.14
99+ $13.26
199+ $13.08
249+ $12.90
499+ $12.73
999+ $12.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Thread Size:
M6x1
Inside Diameter:
35mm
Outside Diameter:
72mm
Width:
32mm
Style:
US
Technical
d 35mm
D 72mm
C 17mm
B 32mm
S 8.5mm
m 6.5mm
C1 5.7mm
r min 0.6mm
G M6x1
Wrench Size 3mm
Set screw torque 5.5 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 25.7kN
Static load rating C0 15.2kN
Weight 0.4kg
