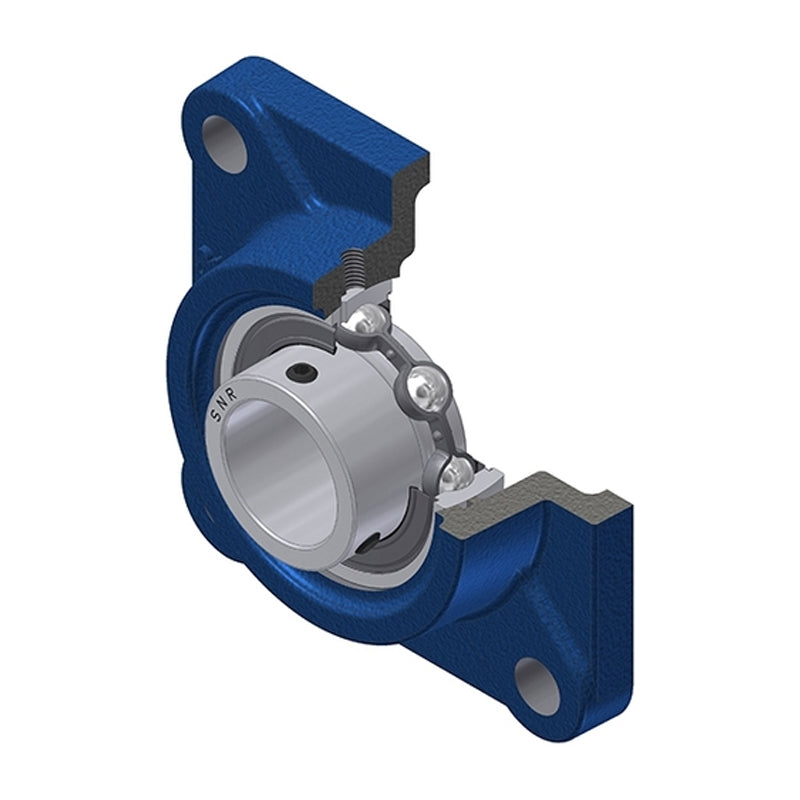

• SNR USF207 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert
1 1

SKU: USF207-SNR

SNR USF207 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert

SNR USF207 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert
$34.15 ex VAT
$34.15 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
USF
Bolt Hole Centres:
92mm
Technical

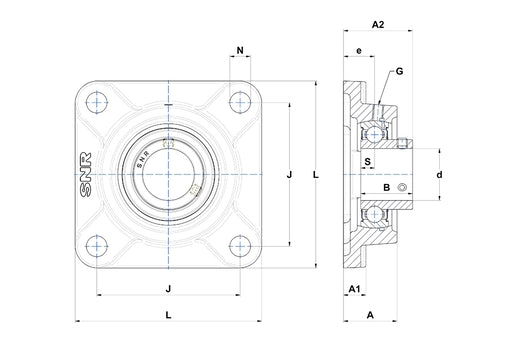

--- Dimensions
Shaft diameter d 35mm
A 34mm
A1 15mm
A2 42.5mm
B 32mm
e 19mm
J 92mm
L 117mm
N 14mm
S 8.5mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 1.45 kg
